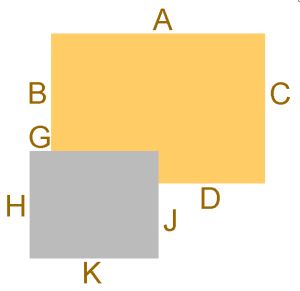

Base dimensions
2.5m deep cabins (8'2")
We recommend that your base should be no smaller than the floor size of the new log cabin and no more than a few inches larger.
Cabin size - 8'2" x 13'1" (2.5m x 4.0m)
Dimension A = 4000mm
Dimension B = 1500mm
Dimension C = 2500mm
Dimension D = 2000mm
Dimension G = 1000mm
Dimension H = 3000mm
Dimension J = 2000mm
Dimension K = 3000mm
Overall width from side to side (A) = 4000mm (excluding verandah)
Overall depth from front to back (C) = 2500mm (excluding verandah)
Cabin size - 8'2" x 14'9" (2.5m x 4.5m)
Dimension A = 4500mm
Dimension B = 1500mm
Dimension C = 2500mm
Dimension D = 2500mm
Dimension G = 1000mm
Dimension H = 3000mm
Dimension J = 2000mm
Dimension K = 3000mm
Overall width from side to side (A) = 4500mm (excluding verandah)
Overall depth from front to back (C) = 2500mm (excluding verandah)
Cabin size - 8'2" x 16'5" (2.5m x 5.0m)
Dimension A = 5000mm
Dimension B = 1500mm
Dimension C = 2500mm
Dimension D = 2500mm
Dimension G = 500mm
Dimension H = 3000mm
Dimension J = 2000mm
Dimension K = 3000mm
Overall width from side to side (A) = 5000mm (excluding verandah)
Overall depth from front to back (C) = 2500mm (excluding verandah)
Cabin size - 8'2" x 18'1" (2.5m x 5.5m)
Dimension A = 5500mm
Dimension B = 1500mm
Dimension C = 2500mm
Dimension D = 3000mm
Dimension G = 500mm
Dimension H = 3000mm
Dimension J = 2000mm
Dimension K = 3000mm
Overall width from side to side (A) = 5500mm (excluding verandah)
Overall depth from front to back (C) = 2500mm (excluding verandah)
Cabin size - 8'2" x 19'8" (2.5m x 6.0m)
Dimension A = 6000mm
Dimension B = 1500mm
Dimension C = 2500mm
Dimension D = 3500mm
Dimension G = 500mm
Dimension H = 3000mm
Dimension J = 2000mm
Dimension K = 3000mm
Overall width from side to side (A) = 6000mm (excluding verandah)
Overall depth from front to back (C) = 2500mm (excluding verandah)
