Floor plan and sizes
4.0m deep cabins (13'1")

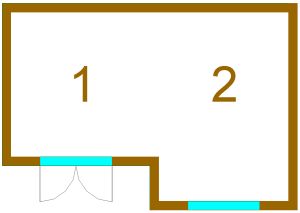

This single room cabin is an irregular shape with an integral porch. The plan shows the standard design with the porch to the left, one double door and one window.
Cabin size 13'1" x 13'1" (4.0m x 4.0m)
Area 1 = 2000mm wide x 3000mm deep
Area 2 = 2000mm wide x 4000mm deep
Cabin size 13'1" x 14'9" (4.0m x 4.5m)
Area 1 = 2000mm wide x 3000mm deep
Area 2 = 2500mm wide x 4000mm deep
Cabin size 13'1" x 16'5" (4.0m x 5.0m)
Area 1 = 2500mm wide x 3000mm deep
Area 2 = 2500mm wide x 4000mm deep
Cabin size 13'1" x 18'1" (4.0m x 5.5m)
Area 1 = 2500mm wide x 3000mm deep
Area 2 = 3000mm wide x 4000mm deep
Cabin size 13'1" x 19'8" (4.0m x 6.0m)
Area 1 = 2500mm wide x 3000mm deep
Area 2 = 3500mm wide x 4000mm deep
