Valley Roof Log Cabin 478 - Double Glazed, Felt Tiles

Valley Roof Log Cabin 478 - Double Glazed, Felt Tiles

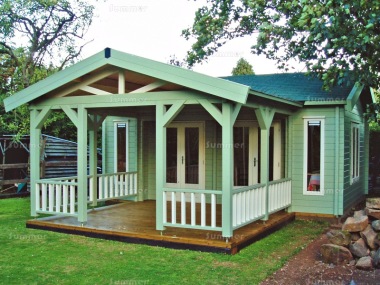

The pictures show the 19'8"x26'3" log cabin (6.0x8.0m) and what may be achieved using coloured preservatives.


These T shape cabins are 19'8" wide (6.0m) and 19'8", 23'0" or 26'3" deep (6.0m, 7.0m or 8.0m), including the front projection. The cabin sizes excluding the front projection are approximately 11'6"x19'8", 13'1"x19'8" or 14'9"x19'8" (3.5x6.0m, 4.0x6.0m or 4.5x6.0m). The front projection is approximately 13'1" wide (4.0m) and features timber decking and decorative balustrades as standard. The price includes two sets of double doors, 2 non opening front sidelight windows and two large double opening windows. Panoramic low level large pane glazing is included as standard with double glazing. These substantial log cabins feature superb quality joinery doors and windows, decorative felt tiles and a choice of 45mm or 70mm thick wall logs. A factory finished preservative treatment is also available as an option. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Back to the Top
  • All timber used in the construction of these log cabins originates from sustainable forests
  • These log cabins are untreated as standard - optional preservative treatments available
  • Interlocking 45mm or 70mm thick tongued and grooved wall logs
  • Strong 19mm thick tongued and grooved roof boards
  • As with most log cabins, the roof is supplied unassembled with the rafters and roof boards cut to size
  • Substantial tongued and grooved timber floor boards in the log cabin
  • Pressure treated floor joists and foundation beams (lifetime preservative treatment)
  • Foundation beams for 45mm log cabins ex 3"x3" (70mm x70mm)
  • Foundation beams for 70mm log cabins ex 4"x3" (90mm x70mm)
  • Floor joists ex 3" x 2" (70mm x 45mm)
  • Heavy duty timber floor for the front canopy featuring strong decking boards fixed to a timber frame
  • Decking boards made from durable Siberian larch
  • Doors and windows are joinery made with fully profiled timbers and morticed and tenoned joints throughout
  • Doors and window glazed with glass (no plastic, acrylic, styrene or perspex)
  • Premium double glazed doors and windows with 24mm thick argon filled double glazing units, 16mm air gaps, a 1.1 U value and fitted with rubber weatherstrips to reduce draughts
  • Panoramic low level glazing
  • Modern large pane glazing style
  • Georgian fanlights on doors and opening windows
  • 2 sets of double hinged doors, fully glazed with high security mortice lock and lever handles
  • Double door width 4'0" (1210mm)
  • Double door height 5'11" (1800mm)
  • Durable aluminium door threshold
  • Internal skirting boards
  • 2 double opening windows each with 2 outward opening side hinged sashes
  • Window width 4'0" (1210mm)
  • Window height 5'0" (1530mm)
  • 2 non opening front sidelight windows
  • Sidelight window width 1'1" (340mm)
  • Sidelight window height 5'0" (1530mm)
  • Decorative mineral felt tiles in a choice of colours included as standard
  • Decorative balustrade panels to the sides and front of the canopy
  • Strong 120mm x 120mm posts with angled braces
  • Weatherproof L-shaped double fascia boards on gable ends
  • External roof overhang approximately 12" to all sides (300mm)
  • Eaves height 7'5" (2250mm)
  • Ridge height 11'4" (3450mm)
  • External cabin sizes do not include the interlocking log corners
  • Internal cabin sizes - subtract 90mm if the logs are 45mm thick, subtract 140mm if the logs are 70mm thick

6.0m x 6.0m log cabin

  • Overall depth 19'8" (6000mm)
  • Overall width 19'8" (6000mm)
  • Internal room size approximately 11'0" deep x 19'3" wide (3360mm x 5860mm) including sidelight window projection
  • Front canopy projection approximately 9'10" deep x 13'1" wide (3000mm x 4000mm)
  • Canopy entrance approximately 4'11" wide (1500mm)

7.0m x 6.0m log cabin

  • Overall depth 23'0" (7000mm)
  • Overall width 19'8" (6000mm)
  • Internal room size approximately 12'8" deep x 19'3" wide (3860mm x 5860mm) including sidelight window projection
  • Front canopy projection approximately 11'6" deep x 13'1" wide (3500mm x 4000mm)
  • Canopy entrance approximately 4'11" wide (1500mm)

8.0m x 6.0m log cabin

  • Overall depth 26'3" (8000mm)
  • Overall width 19'8" (6000mm)
  • Internal room size approximately 14'4" deep x 19'3" wide (4360mm x 5860mm) including sidelight window projection
  • Front canopy projection approximately 13'1" deep x 13'1" wide (4000mm x 4000mm)
  • Canopy entrance approximately 4'11" wide (1500mm)

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

HIGH PERFORMANCE DOORS AND WINDOWS WITH WEATHERSTRIPS: Our high performance premium window and door frames feature weatherstrips to reduce draughts. Weatherstrips are rubber gaskets which are fitted to the door and window frames. The weatherstrips are fitted in the rebates between the fixed outer frames and the hinged parts i.e. the window sashes and door leaves. As the doors and windows are closed the weatherstrips are compressed to form a seal. Heat loss is significantly lower through windows and doors which are fitted with weatherstrips.

DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.

HEAVY DUTY TONGUED AND GROOVED FLOOR: This cabin includes a heavy duty timber floor with tongued and grooved floor boards and substantial floor joists. Skirting boards are also included to ensure a neat internal finish. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits, all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins the boards must be cut to fit on site. This takes much longer and many of the joins are visible afterwards.

PRESSURE TREATED FOUNDATION BEAMS: Substantial foundation beams are laid on the base to support the walls. This ensures that the wall logs are not in contact with the ground. The foundation beams are pressure treated for durability. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. With the foundation beams this log cabin can be built without a floor. If required a timber or concrete floor can be laid inside after the walls and roof have been fitted.

LOW LEVEL GLAZING: Low level glazing provides a panoramic view from inside your garden room so you can appreciate your garden fully. With low level glazing you can enjoy a better view of the garden, especially at sites where the garden slopes away.

DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. Over time each tile sticks to the tile below for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the overall depth including the front projection. The width refers to the front and rear walls including the door wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
