Folding Door Pent Roof Log Cabin 303

Folding Door Pent Roof Log Cabin 303
1
2
3
4
5

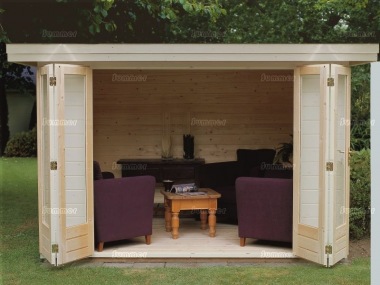

Pictures 1 and 2 show the 7'10"x9'10" log cabin (2.4x3.0m) with optional colour painted finish. Pictures 3 and 4 show the 9'10"x11'10" with an optional extra side window (3.0x3.6m) and what may be achieved using coloured preservatives.

Summary:

The width of the side walls can be up to 18' (5.4m). The length of the front wall can be up to 18' (5.4m). The price includes 4 pane folding doors, double glazing and a choice of 28mm or 45mm thick wall logs. These substantial log cabins feature a durable and low maintenance one piece EPDM rubber roof surface. The patented corner assembly features profiled aluminium connectors with timber cover trims. Other features include superb quality joinery doors and a heavy duty timber floor. A choice of preservative treatments are available as options. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Summary:

The width of the side walls can be up to 18' (5.4m). The length of the front wall can be up to 18' (5.4m). The price includes 4 pane folding doors, double glazing and a choice of 28mm or 45mm thick wall logs. These substantial log cabins feature a durable and low maintenance one piece EPDM rubber roof surface. The patented corner assembly features profiled aluminium connectors with timber cover trims. Other features include superb quality joinery doors and a heavy duty timber floor. A choice of preservative treatments are available as options. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Back to the Top
  • Individually made to order
  • Side wall width up to 17'9" or 5.4m
  • Front wall length up to 17'9" or 5.4m
  • Folding doors with 4 door leaves are included
  • Morticed and tenoned joinery doors with high security mortice lock and lever handles in a chrome or brass finish
  • Door height 6'4" or 1935mm
  • Door width 6'7" or 1995mm (3.0m long log cabins)
  • Door width 7'11" or 2415mm (all other log cabins)
  • Doors glazed with glass (no plastic, acrylic, styrene or perspex)
  • Premium double glazed doors with 24mm thick argon filled double glazing units, 16mm air gaps, a 1.1 U value and fitted with rubber weatherstrips to reduce draughts
  • No windows are included as standard
  • Unique patented wall jointing system with aluminium connectors concealed by timber cover trims
  • Easy assembly of the walls with no nails or screws, which also allows for timber movement
  • All timber used in the construction of this log cabin originates from sustainable forests
  • As with most log cabins, the roof is supplied unassembled with the rafters and roof boards cut to size
  • These log cabins are untreated as standard - the pictures show the optional preservative treatments available
  • 28mm or 45mm thick tongued and grooved wall logs (finished size after machining)
  • 28mm log cabins feature pressure treated ex 3"x2" foundation beams (finished size 45mm x70mm)
  • 45mm log cabins feature pressure treated ex 3"x3" foundation beams (finished size 70mm x70mm)
  • Substantial timber floor
  • 19mm thick tongued and grooved roof boards (finished size after machining)
  • Durable and low maintenance one piece EPDM rubber roof surface
  • Substantial timber fascia boards to front, rear and sides
  • External eaves height 7'5" (2250mm)
  • External ridge height 7'10" (2400mm)
  • External roof overhang 10" to all sides (250mm)
  • External cabin width (side wall) - priced up to 1.8m (5'11"), 2.4m (7'10"), 3.0m (9'10"), 3.6m (11'10"), 4.2m (13'9"), 4.8m (15'9") or 5.4m (17'9")
  • External cabin length (front wall) - priced up to 3.0m (9'10"), 3.6m (11'10"), 4.2m (13'9"), 4.8m (15'9") or 5.4m (17'9")
  • Internal cabin sizes - subtract 56mm if the logs are 28mm thick, subtract 90mm if the logs are 45mm thick
  • This building is easy to deliver if access is restricted - all sections will pass through a normal single door

UNIQUE LOG CORNER ASSEMBLY: This quality garden room features a unique wall jointing system, which is both attractive and strong and combines the benefits of a log cabin with a conventional summerhouse. Each wall log slots into full length aluminium connector poles. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. The aluminium is not visible inside and concealed outside by timber cover trims. The logs and the aluminium connectors are precision milled to ensure a neat fit. No screws or nails are required which makes installation easier and also allows for timber movement. The finished corner assembly is strong, weatherproof and draughtproof.

DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.

HEAVY DUTY TONGUED AND GROOVED FLOOR: The timber floor kit features tongued and grooved floor boards and substantial floor joists. Skirting boards are also included to ensure a neat internal finish. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins only the joists are cut to size and the boards must be cut in on site. This takes much longer and many of the joins are visible afterwards.

PRESSURE TREATED FOUNDATION BEAMS: Substantial foundation beams are laid on the base to support the walls. This ensures that the wall logs are not in contact with the ground. The foundation beams are pressure treated for durability. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. With the foundation beams this log cabin can be built without a floor. If required a timber or concrete floor can be laid inside after the walls and roof have been fitted.

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

HIGH PERFORMANCE DOORS AND WINDOWS WITH WEATHERSTRIPS: Our high performance premium window and door frames feature weatherstrips to reduce draughts. Weatherstrips are rubber gaskets which are fitted to the door and window frames. The weatherstrips are fitted in the rebates between the fixed outer frames and the hinged parts i.e. the window sashes and door leaves. As the doors and windows are closed the weatherstrips are compressed to form a seal. Heat loss is significantly lower through windows and doors which are fitted with weatherstrips.

ONE PIECE EPDM ROOF: A tough EPDM rubber membrane is made in one piece to the size of your roof with no joins. It is easily fitted within a few minutes at normal temperatures with no heat required. EPDM rubber is completely inert, UV stable and not affected by extreme temperatures. It never perishes and it will not rot, split, crack or degrade. EPDM rubber lasts for years with little or no maintenance. It has been widely used in flat roofing for over 40 years from Alaska to the Middle East. It is increasingly popular in the UK where it is widely used for re-roofing flat roof garages and extensions. Even in extreme weather conditions EPDM rubber remains flexible and it will stretch to absorb any movement as a timber roof expands and contracts with the seasons.

LENGTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the side walls. The length refers to the front and rear walls including the door wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
