28mm Pent Log Cabin 658 - Modern Aluminium Hybrid, PEFC Certified
1
2
3
4
5
Play Video
Play Video

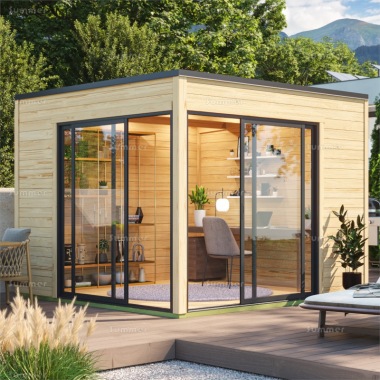

Pictures 1 and 2 show the standard log cabin. Pictures 3, 4 and 5 show the optional paint colours. Picture 6 shows a simplified assembly video of a similar cabin with 45mm wall logs.

Summary:

This elegant modern log cabin is 9'10"x9'10" (3.0x3.0m) with 28mm thick wall logs. All timber is PEFC certified with high grades of timber throughout. The floor and roof are attractive and durable tongued and grooved boards. Other quality features include two sets of panoramic aluminium sliding doors with sidelight windows. The unique corner assembly features strong internal timber posts with external cover trims. A coloured external factory finish is available in a choice of colours. Roof options include untearable roofing felt and a durable one piece EPDM rubber membrane. Other popular options include floor and roof insulation. Detailed fitting instructions are supplied for DIY self assembly. Low cost installation is available in many areas.

Click here to see our Log Cabin Stock List with fast delivery

Back to the Top
  • All timber used in the construction of this product originates from sustainable forests
  • PEFC certified timber throughout, certificate code INT-PEFC-COC-1119, licence number PEFC/16-37-2190
  • To verify our PEFC membership visit the PEFC Member Search and search for Summer Garden (full name "Summer Garden and Leisure Buildings Ltd").
  • 28mm thick tongued and grooved wall logs
  • Strong 15mm thick tongued and grooved roof boards
  • Strong 15mm thick tongued and grooved floor boards
  • Pressure treated 45mm x 45mm floor joists (lifetime preservative treatment)
  • Strong ex 6"x2" roof beams (approximately 44mm x 140mm finished size after machining)
  • Unique corner assembly with substantial timber post inside
  • Strong 55x55mm internal timber corner posts (finished size after machining)
  • Doors and windows glazed with annealed glass (no plastic, acrylic, styrene or perspex)
  • Contemporary panoramic glazing
  • Powder coated aluminium sliding doors
  • Lockable fully glazed sliding doors with handles and keys
  • Multi-point locking system
  • Two sets of single sliding patio doors overall size 2.04m wide x 2.03m high (6'8"x6'8")
  • Metal door thresholds
  • Heavy duty galvanized steel roof joist support brackets
  • External cabin size 3.0m deep x 3.0m wide (9'10"x9'10")
  • Minimum base size 3.0m deep x 3.0m wide (9'10"x9'10")
  • Internal size approximately 2.94m deep x 2.94m wide (9'8"x9'8")
  • Roof size approximately 3.03m deep x 3.0m wide (9'11"x9'10")
  • Overall ridge height approximately 2.45m (8'1") including floor joists and roof boards

A MODERN HYBRID LOG CABIN: This sophisticated modern log cabin combines substantial timber logs and panoramic aluminium doors and windows to provide an elegant contemporary appearance with sleek lines. The hybrid design also includes unique construction features which ensure strength and rigidity. Installation is simple and straightforward but slower than a conventional log cabin. The finished construction is strong and well built.

UNIQUE LOG CORNER ASSEMBLY: This quality log building features a unique corner assembly system, with sturdy internal timber posts. Each log is securely fixed in place. The external cover trims fully enclose the corners to keep the weather out. The finished assembly is strong, weatherproof and draughtproof. It also enhances the modern appearance of this distinctive garden room.

MODERN PARAPET ROOF DESIGN: The log parapet walls extend a few inches above the roof line, providing an elegant modern appearance with no visible roof slope and little evidence of the roof. The roof is fixed just below the top of the walls and slopes gently to the rear. A full width fascia board at the rear matches the roof line, allowing for rainwater drainage while concealing the roof. The rear fascia board can be trimmed to suit roof insulation. A parapet roof offers some extra protection from wind. Fitting roof coverings to a parapet roof is a little more difficult with more folds required in the corners.

POWDER COATED ALUMINIUM: The powder coating provides an attractive and tough finish which has excellent weathering properties. It retains its gloss and colour superbly, providing a similar finish to that found on domestic washing machines.

LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation, which is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Where available, double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less production time.

NORDIC SPRUCE: This building is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.

PEFC CERTIFIED TIMBER: This product is PEFC certified. Our PEFC licence number is PEFC/16-37-2190. Our PEFC chain of custody certificate code is INT-PEFC-COC-1119. To verify our PEFC membership visit the PEFC Member Search and search for Summer Garden (full name "Summer Garden and Leisure Buildings Ltd"). Please note if you want a genuine PEFC certified product it must include a valid PEFC claim, which must include a valid licence number and/or certificate code from a genuine PEFC member. It must also be described as PEFC Certified or PEFC Pure. Claims that "we use PEFC timber" or "our suppliers are PEFC certified" are dishonest, because the PEFC certifies products and not suppliers. If the claim is invalid the timber is not PEFC certified.

ABOUT THE PEFC: PEFC, the Programme for the Endorsement of Forest Certification, is a leading global alliance of national forest certification systems dedicated to promoting sustainable forest management through independent third-party certification. Since 1999 the PEFC has certified over 280 million acres of forest in 56 countries. PEFC promotes the stewardship and use of forests in a way, and at a rate, that maintains their biodiversity, productivity, regeneration capacity, vitality and their potential to fulfil, now and in the future, relevant ecological, economic and social functions, at local, national, and global levels, and that does not cause damage to other ecosystems. PEFC certification ensures that forest-based products reaching the marketplace have been sourced from sustainably managed forests.

HEAVY DUTY TONGUED AND GROOVED FLOOR: This cabin includes a heavy duty timber floor with tongued and grooved floor boards and substantial floor joists. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits, all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins the boards must be cut to fit on site. This takes much longer and many of the joins are visible afterwards.

PRESSURE TREATED FOUNDATION BEAMS: Substantial foundation beams are laid on the base to support the walls. This ensures that the wall logs are not in contact with the ground. The foundation beams are pressure treated for durability. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. With the foundation beams this log cabin can be built without a floor if required.

DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the side walls. The width refers to the front and rear walls including the door wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
