Apex 45mm Log Cabin 550 - Large Panes, Double Glazed

Apex 45mm Log Cabin 550 - Large Panes, Double Glazed
1
2
3

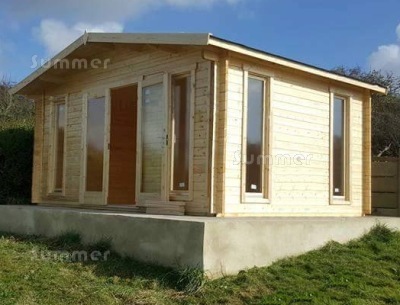

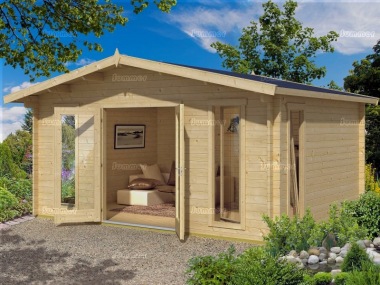

The pictures show the standard log cabin with one side window in each side wall.

Summary:

This incredible value log cabin is 16'5"x12'6" (5.0x3.8m) with 45mm thick wall logs and double glazing as standard. Roof options include untearable roofing felt, felt tiles and genuine cedar shingles. Other popular options include floor and roof insulation. Standard features include panoramic low level glazing with fully glazed double doors and four large opening windows. The floor and roof are attractive and durable tongued and grooved boards. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Summary:

This incredible value log cabin is 16'5"x12'6" (5.0x3.8m) with 45mm thick wall logs and double glazing as standard. Roof options include untearable roofing felt, felt tiles and genuine cedar shingles. Other popular options include floor and roof insulation. Standard features include panoramic low level glazing with fully glazed double doors and four large opening windows. The floor and roof are attractive and durable tongued and grooved boards. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Back to the Top
  • External cabin size 5.0m wide x 3.8m deep (16'5" x 12'6")
  • Internal size 4.71m wide x 3.51m deep (15'5" x 11'6")
  • Roof size approximately 5.28m wide x 4.3m deep (17'4" x 14'1")
  • Minimum base size 4.8m wide x 3.6m deep (15'9" x 11'10")
  • All timber used in the construction of these log cabins originates from sustainable forests
  • 45mm thick double tongued and grooved wall logs
  • Strong 18mm thick tongued and grooved roof boards
  • Strong 18mm thick tongued and grooved floor boards
  • Pressure treated 45mm x 45mm floor joists (lifetime preservative treatment)
  • Double glazed doors and windows (no plastic, acrylic, styrene or perspex)
  • Morticed and tenoned joinery doors and windows
  • Double hinged doors 1.59m wide x 1.96m high (5'3" x 6'5")
  • Mortice lock with handles and keys
  • 2 side hinged tilt and turn opening front windows 0.56m wide x 1.79m high (1'10" x 5'10")
  • 2 side hinged tilt and turn opening side windows 0.56m wide x 1.79m high (1'10" x 5'10")
  • Front windows are fixed position and feature pre-cut logs
  • Side window positions can be decided on site and require the wall logs to be cut during installation. Cutting the logs is a straightforward task with simple 90 degree cuts and all cut edges are concealed by cover trims.
  • Ridge height 2.68m (8'10")
  • Eaves height 2.17m (7'1")
  • Front roof overhang approximately 0.5m (1'8")
  • Pre assembled gables

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the depth. The width refers to the angled gable walls at the front and rear including the door wall. The depth refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
