Pent Roof Log Cabin 527 - Double Glazed, Large Panes

Pent Roof Log Cabin 527 - Double Glazed, Large Panes
1
2
3
4
5
6

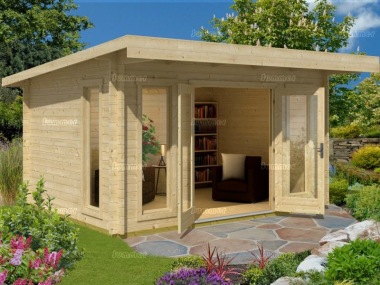

Pictures 1 and 2 show the standard 45mm thick log cabin. Pictures 3, 4 and 5 show the log cabin with twinskin wall logs.

Summary:

Made in Scandinavia, these high quality 3.3x4.2m log cabins feature superb quality joinery, high grades of timber throughout and a choice of 45mm logs, 70mm logs or 190mm twinskin. Double glazing is included as standard. The cabin features panoramic low level glazing with fully glazed double doors and three matching sidelight windows. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Summary:

Made in Scandinavia, these high quality 3.3x4.2m log cabins feature superb quality joinery, high grades of timber throughout and a choice of 45mm logs, 70mm logs or 190mm twinskin. Double glazing is included as standard. The cabin features panoramic low level glazing with fully glazed double doors and three matching sidelight windows. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Back to the Top
  • All timber used in the construction of these log cabins originates from sustainable forests
  • Strong 18mm thick tongued and grooved roof boards
  • Strong 18mm thick tongued and grooved floor boards
  • Pressure treated 45mm x 60mm floor joists (lifetime preservative treatment)
  • Panoramic low level glazing with doors and sidelights fully glazed to the floor
  • Double glazed doors and windows (no plastic, acrylic, styrene or perspex)
  • Morticed and tenoned joinery doors and windows
  • Mortice lock with handles and keys
  • Front roof canopy projection 0.8m (2'7")
  • Doors and windows pre glazed

Log cabins with 45mm logs

  • Interlocking 45mm thick double tongued and grooved wall logs
  • External cabin size 3.3m deep x 4.2m wide (10'10" x 13'9")
  • Approximate roof size 4.2m deep x 4.6m wide (13'9" x 15'1")
  • Internal cabin size 3.01m deep x 3.91m wide (9'10" x 12'10")
  • Minimum base size 3.1m deep x 4.0m wide (10'2" x 13'1")
  • Double hinged doors 1.59m wide x 1.96m high (5'2" x 6'5")
  • 2 side hinged tilt and turn opening sidelight windows in the front wall, 0.56m wide x 1.79m high (1'10" x 5'10")
  • 1 side hinged tilt and turn opening sidelight window in a side wall, 0.56m wide x 1.79m high (1'10" x 5'10")
  • Eaves height approximately 2.11m (6'11")
  • Ridge height approximately 2.34m (7'8")

Log cabins with 70mm logs

  • Interlocking 70mm thick double tongued and grooved wall logs
  • External cabin size 3.3m deep x 4.2m wide (10'10" x 13'9")
  • Approximate roof size 4.2m deep x 4.6m wide (13'9" x 15'1")
  • Internal cabin size 2.96m deep x 3.86m wide (9'9" x 12'8")
  • Minimum base size 3.1m deep x 4.0m wide (10'2" x 13'1")
  • Double hinged doors 1.58m wide x 1.93m high (5'2" x 6'4")
  • 2 side hinged tilt and turn opening sidelight windows in the front wall, 0.55m wide x 1.73m high (1'10" x 5'8")
  • 1 side hinged tilt and turn opening sidelight window in a side wall, 0.55m wide x 1.73m high (1'10" x 5'8")
  • Eaves height approximately 2.18m (7'2")
  • Ridge height approximately 2.45m (8'0")

Log cabins with 190mm thick twinskin walls

  • Interlocking 190mm thick twinskin walls (45mm external wall log + 100mm cavity + 45mm internal wall log)
  • External cabin size 3.3m deep x 4.2m wide (10'10" x 13'9")
  • Approximate roof size 4.2m deep x 4.6m wide (13'9" x 15'1")
  • Internal cabin size 2.72m deep x 3.62m wide (8'11" x 11'11")
  • Minimum base size 3.1m deep x 4.0m wide (10'2" x 13'1")
  • Double hinged doors 1.58m wide x 1.93m high (5'2" x 6'4")
  • 2 side hinged tilt and turn opening sidelight windows in the front wall, 0.55m wide x 1.73m high (1'10" x 5'8")
  • 1 side hinged tilt and turn opening sidelight window in a side wall, 0.55m wide x 1.73m high (1'10" x 5'8")
  • Eaves height approximately 2.04m (6'8")
  • Ridge height approximately 2.31m (7'7")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sloping wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
