Apex Log Cabin 49 - Double Door

Apex Log Cabin 49 - Double Door
1
2
3

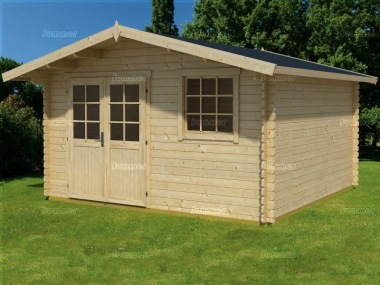

The pictures show the 4.1x4.1m log cabin with optional felt tiles.

Summary:

These high specification log cabins are 4.1x3.2m or 4.1x4.1m with 28mm thick wall logs quality joinery and high grades of timber. Options include decorative felt tiles and floor and roof insulation. Double opening hinged doors and an opening front window are included. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Summary:

These high specification log cabins are 4.1x3.2m or 4.1x4.1m with 28mm thick wall logs quality joinery and high grades of timber. Options include decorative felt tiles and floor and roof insulation. Double opening hinged doors and an opening front window are included. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Back to the Top
  • All timber used in the construction of these log cabins originates from sustainable forests
  • 28mm thick tongued and grooved wall logs
  • Strong 18mm thick tongued and grooved roof boards
  • Strong 18mm thick tongued and grooved floor boards
  • Pressure treated 45mm x 60mm floor joists (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Double hinged doors 1.59m wide x 1.96m high (5'2" x 6'5")
  • Mortice lock with handles and keys
  • 1 side hinged tilt and turn opening front window 0.88m wide x 0.88m high (2'11" x 2'11")
  • Ridge height 2.57m (8'5")
  • Eaves height 2.05m (6'9")
  • Doors and windows pre glazed
  • Glazed with glass (no plastic, acrylic, styrene or perspex)
  • Pre assembled gables

4.1m x 3.2m log cabin

  • External cabin size 4.1m wide x 3.2m deep (13'5" x 10'6")
  • Optional terrace size 4.1m wide x 1.3m deep (13'5" x 4'3")
  • Overall size including terrace 4.1m wide x 4.5m deep (13'5" x 14'9")
  • Approximate roof size with or without terrace 4.5m wide x 3.95m deep (14'9" x 14'0")
  • Internal cabin size 3.84m x 2.94m (12'7" x 9'8")
  • Minimum base size without terrace 3.9m x 3.0m (12'10" x 9'10")
  • Minimum base size with terrace 3.9m x 4.3m (12'10" x 14'1")
  • Front roof canopy projection 0.7m (2'4") with or without terrace

4.1m x 4.1m log cabin

  • External cabin size 4.1m wide x 4.1m deep (13'5" x 13'5")
  • Optional terrace size 4.1m wide x 1.3m deep (13'5" x 4'3")
  • Overall size including terrace 4.1m wide x 5.4m deep (13'5" x 17'9")
  • Approximate roof size with or without terrace 4.5m wide x 4.55m deep (14'9" x 14'11")
  • Internal cabin size 3.84m x 3.84m (12'7" x 12'7")
  • Minimum base size without terrace 3.9m x 3.9m (12'10" x 12'10")
  • Minimum base size with terrace 3.9m x 5.2m (12'10" x 17'1")
  • Front roof canopy projection 0.4m (1'4") with or without terrace

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. These sizes do not include the terrace. The first dimension listed is the width and the second dimension is the depth. The width refers to the angled gable walls at the front and rear including the door wall. The depth refers to the side walls. The sizes listed are external wall sizes. These sizes do not including the roof overhang. Many other suppliers quote the overall roof size which is much larger.
