Three Room Side Door Apex Log Cabin 247 - Georgian

Three Room Side Door Apex Log Cabin 247 - Georgian
1
2
3
4

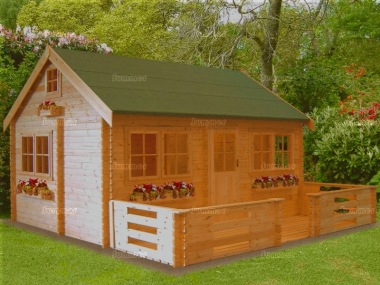

Pictures 1 and 2 show the cabin with optional terrace and window boxes. Picture 3 shows an internal view of a partially installed cabin before the doors or roof are fitted, showing the ladder access to the loft area.

Summary:

This superb quality 3 room log cabin is 13' wide x 18' long (3.89m x 5.49m). The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include a 5' (1.5m) deep terrace, double glazing and insulation. Features include a choice of 34mm, 45mm or 70mm thick logs. An additional loft area with ladder access is also included as standard. Other features include an external single door, 2 internal single doors, 4 large double windows and a single window. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Summary:

This superb quality 3 room log cabin is 13' wide x 18' long (3.89m x 5.49m). The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include a 5' (1.5m) deep terrace, double glazing and insulation. Features include a choice of 34mm, 45mm or 70mm thick logs. An additional loft area with ladder access is also included as standard. Other features include an external single door, 2 internal single doors, 4 large double windows and a single window. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Back to the Top
  • Choice of 34mm, 45mm or 70mm thick wall logs, 34mm thick wall logs are single tongued and grooved, 45mm and 70mm thick wall logs are double tongued and grooved
  • All timber used in the construction of this log cabin originates from sustainable forests
  • Overall external cabin size 3.89m deep x 5.49m long (12'9" x 18'0")
  • Minimum base size 3.7m deep x 5.3m long (12'1" x 17'5")
  • Main room - Internal room size 3.6m deep x 2.82m long (11'10" x 9'3")
  • Second room (at front) - Internal room size 1.96m deep x 2.34m long (6'5" x 7'8")
  • Smallest room (at rear) - Internal room size 1.6m deep x 2.34m long (5'3" x 7'8")
  • Loft area above smaller rooms - Internal size 3.6m deep x 2.34m long (11'10" x 7'8")
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • 20mm tongued and grooved floor boards
  • 135mm x 45mm planed roof purlins
  • 20mm tongued and grooved roof boards
  • Morticed and tenoned joinery doors and windows
  • Single glazed horticultural glass included
  • External door - Part glazed single hinged door 0.9m wide x 2.0m high (2'11" x 6'7")
  • Overall door frame size 0.845m wide x 1.945m high (2'9" x 6'5")
  • Door size 0.705m wide x 1.805m high (2'4" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • Internal door (into second room at front) - Fully boarded single hinged door 0.9m wide x 2.0m high (2'11" x 6'7")
  • Overall door frame size 0.845m wide x 1.945m high (2'9" x 6'5")
  • Door size 0.705m wide x 1.805m high (2'4" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • Internal door (into smallest room at rear) - Fully boarded single hinged door 0.9m wide x 2.0m high (2'11" x 6'7")
  • Overall door frame size 0.845m wide x 1.945m high (2'9" x 6'5")
  • Door size 0.705m wide x 1.805m high (2'4" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • Mortice lock with handles and keys
  • 2 double opening windows positioned in the front wall either side of the door
  • Overall window frame size 1.498m wide x 0.985m high (4'11" x 3'3")
  • Window size 1.318m wide x 0.805m high (4'4" x 2'8")
  • 1 double opening window positioned in the centre of the main room side wall
  • Overall window frame size 1.498m wide x 0.985m high (4'11" x 3'3")
  • Window size 1.318m wide x 0.805m high (4'4" x 2'8")
  • 1 double opening window positioned in the centre of the smallest room side wall
  • Overall window frame size 1.498m wide x 0.985m high (4'11" x 3'3")
  • Window size 1.318m wide x 0.805m high (4'4" x 2'8")
  • 1 single opening window 0.66m wide x 0.66m high (2'2" x 2'2") positioned in the centre of the loft area side wall
  • 38kg green mineral felted roof
  • Ridge height 3.5m (11'6")
  • Eaves height 2.3m (7'7")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. These sizes do not include the terrace. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are external wall sizes. These sizes do not including the roof overhang. Many other suppliers quote the overall roof size which is much larger.
