Side Door Apex Log Cabin 246 - Georgian, Single Door

Side Door Apex Log Cabin 246 - Georgian, Single Door
1
2
3

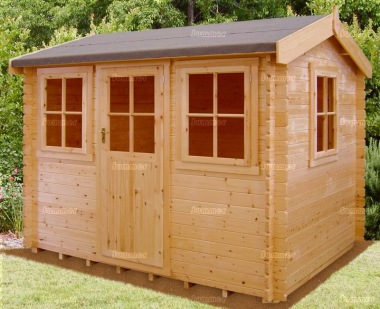

The pictures show the 2.4x3.0m (8'x10') cabin with optional side window (8' gable wall with 10' door wall).

Summary:

These substantial log cabins are 8' (2.4m), 10'(3.0m) 12' (3.6m) or 14' (4.2m) deep. The widths are 10' (3.0m), 12' (3.6m), 14' (4.2m) or 16' (4.8m) wide. The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. Features include a choice of 28mm, 34mm, 45mm or 70mm thick logs. Standard features include a part glazed single hinged door and 2 opening windows. The floor and roof are attractive and durable tongued and grooved boards. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Summary:

These substantial log cabins are 8' (2.4m), 10'(3.0m) 12' (3.6m) or 14' (4.2m) deep. The widths are 10' (3.0m), 12' (3.6m), 14' (4.2m) or 16' (4.8m) wide. The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. Features include a choice of 28mm, 34mm, 45mm or 70mm thick logs. Standard features include a part glazed single hinged door and 2 opening windows. The floor and roof are attractive and durable tongued and grooved boards. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Back to the Top
  • Choice of 28mm, 34mm, 45mm or 70mm thick wall logs, 28mm and 34mm thick wall logs are single tongued and grooved, 45mm and 70mm thick wall logs are double tongued and grooved
  • All timber used in the construction of this log cabin originates from sustainable forests
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Mortice lock with handles and keys
  • Single glazed horticultural glass included
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Log cabins with 34mm, 45mm or 70mm logs only

  • Part glazed single hinged door
  • Overall door frame size 0.845m wide x 1.945m high (2'9" x 6'5")
  • Door size 0.705m wide x 1.805m high (2'4" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • 2 fully opening front windows
  • Overall window frame size 0.813m wide x 0.985m high (2'8" x 3'3")
  • Window size 0.633m wide x 0.805m high (2'1" x 2'8")
  • 20mm tongued and grooved floor boards
  • 20mm tongued and grooved roof boards
  • 135mm x 45mm planed roof purlins
  • 38kg green mineral felted roof

Log cabins with 28mm logs only

  • Part glazed single hinged door
  • Overall door frame size 0.81m wide x 1.877m high (2'8" x 6'2")
  • Door size 0.67m wide x 1.737m high (2'2" x 5'8")
  • Approximate head clearance 1.787m high (5'10")
  • Door hinges on the right when viewed from outside
  • 2 fully opening front window
  • Overall window frame size 0.813m wide x 0.985m high (2'8" x 3'3")
  • Window size 0.633m wide x 0.805m high (2'1" x 2'8")
  • 16mm tongued and grooved floor boards
  • 16mm tongued and grooved roof boards
  • 70mm x 45mm planed roof purlins
  • 20kg green mineral felted roof

Cabin sizes and base sizes

  • External cabin width 2.39m, 2.99m, 3.59m or 4.19m (7'10", 9'10", 11'10" or 13'9")
  • External cabin length 2.99m, 3.59m, 4.19m or 4.79m (9'10", 11'10", 13'9" or 15'9")
  • Minimum base width 2.2m, 2.8m, 3.4m or 4.0m (7'3", 9'2", 11'2" or 13'1")
  • Minimum base length 2.8m, 3.4m, 4.0m or 4.6m (9'2", 11'2", 13'1" or 15'1")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are external wall sizes. These sizes do not include the roof overhang. Many others quote the overall roof size which is much larger.
