Three Room Apex Log Cabin 245 - Large Panes

Three Room Apex Log Cabin 245 - Large Panes
1
2

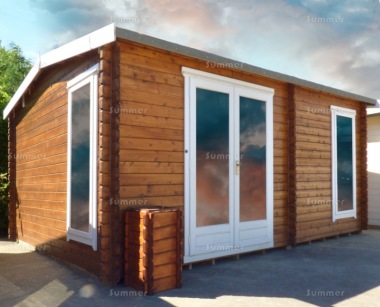

The picture shows the standard cabin with optional felt tiles.

Summary:

This superb quality 3 room log cabin is 13' deep x 17' wide (3.89m x 5.28m). Features includes a choice of 34mm, 45mm or 70mm thick logs. The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. Standard features include panoramic low level glazing with fully glazed double doors and 2 large windows. Toughened glass and good quality joinery doors and windows are also included. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Summary:

This superb quality 3 room log cabin is 13' deep x 17' wide (3.89m x 5.28m). Features includes a choice of 34mm, 45mm or 70mm thick logs. The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. Standard features include panoramic low level glazing with fully glazed double doors and 2 large windows. Toughened glass and good quality joinery doors and windows are also included. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Back to the Top
  • Choice of 34mm, 45mm or 70mm thick wall logs, 34mm thick wall logs are single tongued and grooved, 45mm and 70mm thick wall logs are double tongued and grooved
  • All timber used in the construction of this log cabin originates from sustainable forests
  • Overall external cabin size 3.89m deep x 5.28m long (12'9" x 17'4")
  • Minimum base size 3.7m deep x 5.09m long (12'1" x 16'8")
  • Main room - Internal room size 3.6m deep x 2.8m long (11'10" x 9'2")
  • Second room (at front) - Internal room size 2.12m deep x 2.15m long (6'11" x 7'1")
  • Smallest room (at rear) - Internal room size 1.48m deep x 2.15m long (4'10" x 7'1")
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • 20mm tongued and grooved floor boards
  • 135mm x 45mm planed roof purlins
  • 20mm tongued and grooved roof boards
  • Morticed and tenoned joinery doors and windows
  • Toughened safety glass to BS6206A included as standard
  • External door - Fully glazed double hinged doors
  • Overall door frame size 1.561m wide x 1.945m high (5'1" x 6'5")
  • Door size 1.421m wide x 1.805m high (4'8" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • Internal door (from main room into second room at front) - Fully glazed double hinged doors
  • Overall door frame size 1.561m wide x 1.945m high (5'1" x 6'5")
  • Door size 1.421m wide x 1.805m high (4'8" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • Internal door (from second room into smallest room at rear) - Fully boarded single hinged door
  • Overall door frame size 0.845m wide x 1.945m high (2'9" x 6'5")
  • Door size 0.705m wide x 1.805m high (2'4" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • Mortice lock with handles and keys
  • Main room window - 1 fully opening window positioned off centre in the side wall
  • Overall window frame size 0.813m wide x 1.718m high (2'8" x 5'8")
  • Window size 0.633m wide x 1.538m high (2'1" x 5'1")
  • Second room window - 1 fully opening window positioned off centre in the front wall
  • Overall window frame size 0.813m wide x 1.718m high (2'8" x 5'8")
  • Window size 0.633m wide x 1.538m high (2'1" x 5'1")
  • 38kg green mineral felted roof
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

TOUGHENED SAFETY GLASS: Toughened safety glass is around 6 times stronger than normal glass so it is less likely to break. When it does break, toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are external wall sizes. These sizes do not include the roof overhang. Many others quote the overall roof size which is much larger.
