Side Door Apex Log Cabin 243 - Verandah, Large Panes

Side Door Apex Log Cabin 243 - Verandah, Large Panes
1
2
3

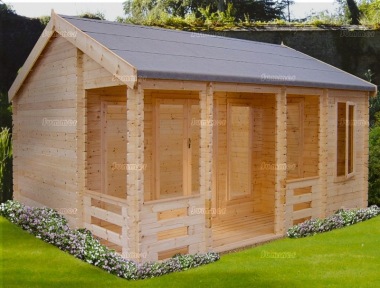

The pictures show the standard cabin.

Summary:

Size 18' wide x 20' long (5.49m x 5.95m). This superb quality log cabin features a choice of 45mm or 70mm thick logs and an integral 6' deep verandah (1.79m). The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. Standard features include panoramic low level glazing with fully glazed double doors and 4 large windows. Toughened glass and good quality joinery doors and windows are also included. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Summary:

Size 18' wide x 20' long (5.49m x 5.95m). This superb quality log cabin features a choice of 45mm or 70mm thick logs and an integral 6' deep verandah (1.79m). The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. Standard features include panoramic low level glazing with fully glazed double doors and 4 large windows. Toughened glass and good quality joinery doors and windows are also included. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Back to the Top
  • Choice of 45mm or 70mm thick wall logs, these wall logs are double tongued and grooved
  • All timber used in the construction of this log cabin originates from sustainable forests
  • Overall external cabin size 5.49m wide x 5.95m long (18'0" x 19'6")
  • Overall external verandah size 1.79m wide x 4.28m long (5'10" x 14'1")
  • Minimum base size 5.3m wide x 5.76m long (17'5" x 18'11")
  • Integral verandah includes balustrade to the side and front and strong 25mm thick pressure treated decking (lifetime preservative treatment)
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • 20mm tongued and grooved floor boards
  • 135mm x 45mm planed roof purlins
  • 20mm tongued and grooved roof boards
  • Morticed and tenoned joinery doors and windows
  • Fully glazed double hinged doors
  • Overall door frame size 1.561m wide x 1.945m high (5'1" x 6'5")
  • Door size 1.421m wide x 1.805m high (4'8" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • Mortice lock with handles and keys
  • 2 fully opening windows positioned in the front wall either side of the double doors
  • Overall window frame size 0.813m wide x 1.718m high (2'8" x 5'8")
  • Window size 0.633m wide x 1.538m high (2'1" x 5'1")
  • 1 fully opening window positioned in the front wall next to the verandah
  • Overall window frame size 0.813m wide x 1.351m high (2'8" x 4'5")
  • Window size 0.633m wide x 1.171m high (2'1" x 3'11")
  • 1 fully opening window positioned in the side wall at the end of the verandah
  • Overall window frame size 0.813m wide x 1.351m high (2'8" x 4'5")
  • Window size 0.633m wide x 1.171m high (2'1" x 3'11")
  • 38kg green mineral felted roof
  • Ridge height 3.1m (10'2")
  • Eaves height 2.1m (6'10")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

TOUGHENED SAFETY GLASS: Toughened safety glass is around 6 times stronger than normal glass so it is less likely to break. When it does break, toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly.

SIZES - DEPTH AND WIDTH: The overall sizes including the verandah are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
