Side Door Apex 28mm Log Cabin 237 - Integral Porch

Side Door Apex 28mm Log Cabin 237 - Integral Porch
1
2

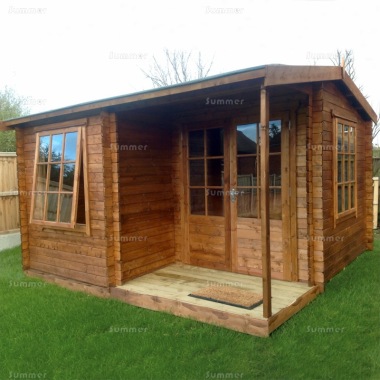

The picture shows the standard 4.2x5.0m (14'x16') cabin (14' gable wall with 16' door wall).

Summary:

These superb value log cabins are avaialble in 2 widths and 4 lengths. The widths are 12' (3.6m) or 14' (4.2m). The lengths are 13' (3.9m), 15' (4.5m), 16'4 (5.0m) or 17'6 (5.3m). The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include toughened glass, roof insulation and floor insulation. Features include 28mm thick wall logs and an integral porch. Other features include panoramic low level glazing with double hinged doors and 2 large windows. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Summary:

These superb value log cabins are avaialble in 2 widths and 4 lengths. The widths are 12' (3.6m) or 14' (4.2m). The lengths are 13' (3.9m), 15' (4.5m), 16'4 (5.0m) or 17'6 (5.3m). The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include toughened glass, roof insulation and floor insulation. Features include 28mm thick wall logs and an integral porch. Other features include panoramic low level glazing with double hinged doors and 2 large windows. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Back to the Top
  • 28mm thick tongued and grooved wall logs
  • All timber used in the construction of this log cabin originates from sustainable forests
  • Integral porch with solid corner post and strong 25mm thick pressure treated decking (lifetime preservative treatment)
  • Integral porch size 1.87m wide x 1.05m deep (6'2" x 3'5")
  • 16mm thick tongued and grooved roof boards (finished size after machining)
  • 16mm thick tongued and grooved floor boards (finished size after machining)
  • 70mm x 45mm planed roof purlins
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Double hinged doors
  • Overall door frame size 1.5m wide x 1.877m high (4'11" x 6'2")
  • Door size 1.36m wide x 1.737m high (4'6" x 5'8")
  • Approximate head clearance 1.787m high (5'10")
  • Mortice lock with handles and keys
  • All log cabins include 1 fully opening top hinged front window
  • Overall window frame size 1.095m wide x 1.413m high (3'8" x 4'8")
  • Window size 0.915m wide x 1.233m high (3'0" x 4'1")
  • All log cabins include 1 fully opening top hinged side window
  • Overall window frame size 1.095m wide x 1.413m high (3'8" x 4'8")
  • Window size 0.915m wide x 1.233m high (3'0" x 4'1")
  • 20kg green mineral felted roof
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Cabin sizes and base sizes

  • External cabin width 3.59m or 4.19m (11'10" or 13'9")
  • External cabin length 3.89m, 4.49m, 4.99m or 5.34m (12'9", 14'9", 16'4" or 17'6")
  • Minimum base width 3.4m or 4.0m (11'2" or 13'1")
  • Minimum base length 3.7m, 4.3m, 4.8m or 5.15m (12'2", 14'1", 15'10" or 16'11")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are external wall sizes. These sizes do not include the roof overhang. Many others quote the overall roof size which is much larger.
