Side Door Apex Log Cabin 234 - Large Panes, Double Door

Side Door Apex Log Cabin 234 - Large Panes, Double Door
1
2
3

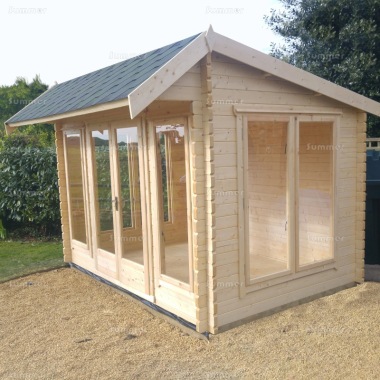

The pictures show the 2.4x3.6m cabin with optional terrace and felt tiles.

Summary:

These substantial log cabins are available in 4 depths and 3 widths. The depths are 8' (2.4m), 10' (3.0m) 12' (3.6m) or 14' (4.2m) deep. The widths are 12' (3.6m), 14' (4.2m) 16' (4.8m) wide. Options include a 5' (1.5m) deep terrace, double glazing and felt tiles. Features include a choice of 34mm, 45mm or 70mm thick wall logs. Other features include panoramic low level glazing with fully glazed double doors and 4 large windows. An attractive front roof canopy and toughened glass are included as standard. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Summary:

These substantial log cabins are available in 4 depths and 3 widths. The depths are 8' (2.4m), 10' (3.0m) 12' (3.6m) or 14' (4.2m) deep. The widths are 12' (3.6m), 14' (4.2m) 16' (4.8m) wide. Options include a 5' (1.5m) deep terrace, double glazing and felt tiles. Features include a choice of 34mm, 45mm or 70mm thick wall logs. Other features include panoramic low level glazing with fully glazed double doors and 4 large windows. An attractive front roof canopy and toughened glass are included as standard. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Back to the Top
  • Choice of 34mm, 45mm or 70mm thick wall logs, 34mm thick wall logs are single tongued and grooved, 45mm and 70mm thick wall logs are double tongued and grooved
  • All timber used in the construction of this log cabin originates from sustainable forests
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • 20mm tongued and grooved floor boards
  • 135mm x 45mm planed roof purlins
  • 20mm tongued and grooved roof boards
  • Morticed and tenoned joinery doors and windows
  • Toughened safety glass to BS6206A included as standard
  • Mortice lock with handles and keys
  • Double hinged doors
  • Overall door frame size 1.561m wide x 1.945m high (5'1" x 6'5")
  • Door size 1.421m wide x 1.805m high (4'8" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • All log cabins include 2 fully opening front windows
  • Overall window frame size 0.813m wide x 1.718m high (2'8" x 5'8")
  • Window size 0.633m wide x 1.538m high (2'1" x 5'1")
  • All log cabins include a fully opening double window to each side wall
  • Overall window frame size 1.498m wide x 1.718m high (4'11" x 5'8")
  • Window size 1.318m wide x 1.538m high (4'4" x 5'1")
  • 38kg green mineral felted roof
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Cabin sizes and base sizes

  • External cabin width 2.39m, 2.99m, 3.59m or 4.19m (7'10", 9'10", 11'9" or 13'9")
  • External cabin length 3.59m, 4.19m or 4.79m (11'9", 13'9" or 15'9")
  • Minimum base width 2.2m, 2.8m, 3.4m or 4.0m (7'2", 9'2", 11'2" or 13'1")
  • Minimum base depth cabin only 3.4m, 4.0m or 4.6m (11'2", 13'1" or 15'1")
  • Minimum base depth including terrace add 1.5m (4'11")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

TOUGHENED SAFETY GLASS: Toughened safety glass is around 6 times stronger than normal glass so it is less likely to break. When it does break, toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. These sizes do not include the terrace. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are external wall sizes. These sizes do not including the roof overhang. Many other suppliers quote the overall roof size which is much larger.
