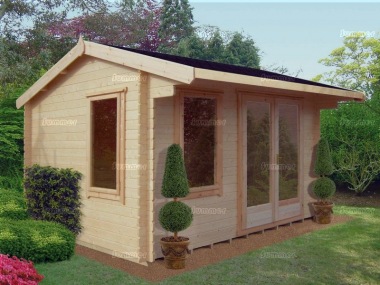

Side Door Apex Log Cabin 233 - Large Panes

Side Door Apex Log Cabin 233 - Large Panes
1
2
3

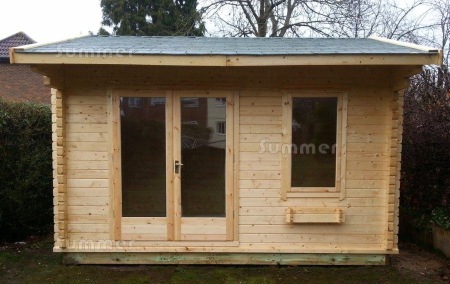

The pictures show the 3.0x3.6m (10'x12') cabin with optional side window (10' gable wall with 12' door wall).

Summary:

Gable wall 8' to 14' long (2.4m to 4.2m). Door wall 10' to 16' long (3.0m to 4.8m). The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. These substantial log cabins feature a choice of 28mm, 34mm, 45mm or 70mm thick wall logs. Other features include panoramic low level glazing with fully glazed double doors and a large front window. An attractive front roof canopy and toughened glass are included as standard. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Summary:

Gable wall 8' to 14' long (2.4m to 4.2m). Door wall 10' to 16' long (3.0m to 4.8m). The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. These substantial log cabins feature a choice of 28mm, 34mm, 45mm or 70mm thick wall logs. Other features include panoramic low level glazing with fully glazed double doors and a large front window. An attractive front roof canopy and toughened glass are included as standard. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Back to the Top
  • Choice of 28mm, 34mm, 45mm or 70mm thick wall logs, 28mm and 34mm thick wall logs are single tongued and grooved, 45mm and 70mm thick wall logs are double tongued and grooved
  • All timber used in the construction of this log cabin originates from sustainable forests
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Toughened safety glass to BS6206A included as standard
  • Double hinged doors
  • Mortice lock with handles and keys
  • All log cabins include 1 fully opening front window
  • Front canopy roof projection approximately 0.6m (2'0")
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Log cabins with 34mm, 45mm or 70mm logs only

  • 20mm tongued and grooved floor boards
  • 20mm tongued and grooved roof boards
  • 135mm x 45mm planed roof purlins
  • 38kg green mineral felted roof
  • Double hinged doors
  • Overall door frame size 1.561m wide x 1.945m high (5'1" x 6'5")
  • Door size 1.421m wide x 1.805m high (4'8" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • All log cabins include 1 fully opening front window
  • Overall window frame size 0.813m wide x 1.351m high (2'8" x 4'5")
  • Window size 0.633m wide x 1.171m high (2'1" x 3'11")

Log cabins with 28mm logs only

  • 16mm tongued and grooved floor boards
  • 16mm tongued and grooved roof boards
  • 70mm x 45mm planed roof purlins
  • 20kg green mineral felted roof
  • Double hinged doors
  • Overall door frame size 1.5m wide x 1.877m high (4'11" x 6'2")
  • Door size 1.36m wide x 1.737m high (4'6" x 5'8")
  • Approximate head clearance 1.787m high (5'10")
  • All log cabins include 1 fully opening front window
  • Overall window frame size 0.813m wide x 1.413m high (2'8" x 4'8")
  • Window size 0.633m wide x 1.233m high (2'1" x 4'1")

Cabin sizes and base sizes

  • External cabin width 2.39m, 2.99m, 3.59m or 4.19m (7'10", 9'10", 11'10" or 13'9")
  • External cabin length 2.99m, 3.59m, 4.19m or 4.79m (9'10", 11'10", 13'9" or 15'9")
  • Approximate roof width including overhang 2.99m, 3.59m, 4.19m or 4.79m (9'10", 11'10", 13'9" or 15'9")
  • Minimum base width 2.3m, 2.8m, 3.4m or 4.0m (7'7", 9'2", 11'2" or 13'1")
  • Minimum base length 2.8m, 3.4m, 4.0m or 4.6m (9'2", 11'2", 13'1" or 15'1")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

TOUGHENED SAFETY GLASS: Toughened safety glass is around 6 times stronger than normal glass so it is less likely to break. When it does break, toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are external wall sizes. These sizes do not include the roof overhang. Many others quote the overall roof size which is much larger.
