Georgian Apex Double Door Log Cabin 136

Georgian Apex Double Door Log Cabin 136
1
2

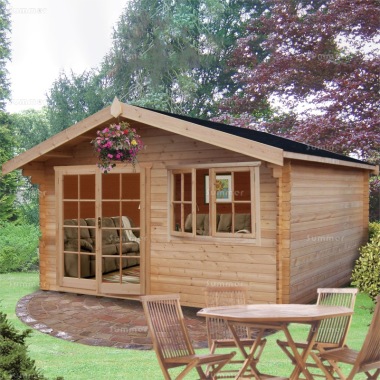

The picture shows the 3.6m x 4.2m cabin with optional 8 pane side window.

Summary:

The width varies from 12' to 16' (3.6m to 4.8m). The depth varies from 10' to 16' (3.0m to 4.8m). These substantial log cabins feature a choice of 28mm, 34mm, 45mm or 70mm thick wall logs. The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. Features include a large glazed area with fully glazed double doors and a double opening front window. The floor and roof are attractive and durable tongued and grooved boards. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Summary:

The width varies from 12' to 16' (3.6m to 4.8m). The depth varies from 10' to 16' (3.0m to 4.8m). These substantial log cabins feature a choice of 28mm, 34mm, 45mm or 70mm thick wall logs. The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. Features include a large glazed area with fully glazed double doors and a double opening front window. The floor and roof are attractive and durable tongued and grooved boards. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Back to the Top
  • Choice of 28mm, 34mm, 45mm or 70mm thick wall logs, 28mm and 34mm thick wall logs are single tongued and grooved, 45mm and 70mm thick wall logs are double tongued and grooved
  • All timber used in the construction of this log cabin originates from sustainable forests
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Single glazed horticultural glass included
  • Double hinged doors
  • Mortice lock with handles and keys
  • All log cabins include 1 double opening front window
  • Front canopy roof projection approximately 0.6m (2'0")
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Log cabins with 34mm, 45mm or 70mm logs only

  • 20mm tongued and grooved floor boards
  • 20mm tongued and grooved roof boards
  • 135mm x 45mm planed roof purlins
  • 38kg green mineral felted roof
  • Double hinged doors
  • Overall door frame size 1.561m wide x 1.945m high (5'1" x 6'5")
  • Door size 1.421m wide x 1.805m high (4'8" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • All log cabins include 1 double opening front window
  • Overall window frame size 1.498m wide x 0.985m high (4'11" x 3'3")
  • Window size 1.318m wide x 0.805m high (4'4" x 2'8")

Log cabins with 28mm logs only

  • 16mm tongued and grooved floor boards
  • 16mm tongued and grooved roof boards
  • 70mm x 45mm planed roof purlins
  • 20kg green mineral felted roof
  • Double hinged doors
  • Overall door frame size 1.5m wide x 1.877m high (4'11" x 6'2")
  • Door size 1.36m wide x 1.737m high (4'6" x 5'8")
  • Approximate head clearance 1.787m high (5'10")
  • All log cabins include 1 double opening front window

Cabin sizes and base sizes

  • External cabin width 3.59m, 4.19m, 4.74m or 5.34m (11'10", 13'9", 15'7" or 17'6")
  • External cabin depth 2.99m, 3.59m, 4.19m or 4.79m (9'10", 11'10", 13'9" or 15'9")
  • Minimum base width 3.4m, 4.0m, 4.55m or 5.15m (11'2", 13'1", 14'11" or 16'11")
  • Minimum base depth 2.8m, 3.4m, 4.0m or 4.6m (9'2", 11'2", 13'1" or 15'1")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the depth. The width refers to the angled gable walls at the front and rear including the door wall. The depth refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
