Georgian Apex Double Door Log Cabin 133

Georgian Apex Double Door Log Cabin 133
1
2
3

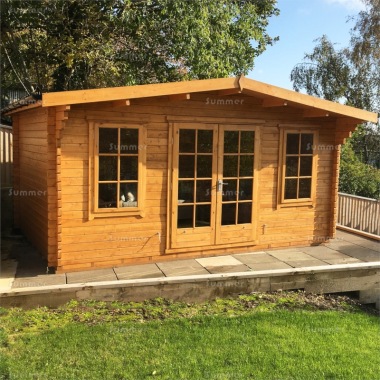

The pictures show the 3.6x3.0m cabin with optional terrace and side window.

Summary:

These substantial log cabins are available in 3 widths and 5 lengths. The widths are 12' (3.6m), 14' (4.2m) or 16' (4.8m) wide. The lengths are 8' (2.4m), 10' (3.0m), 12' (3.6m), 14' (4.2m) or 16' ( 4.8m) long. Features include a choice of 28mm, 34mm, 45mm or 70mm thick wall logs. The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. Features include panoramic low level glazing with fully glazed double doors and two opening front windows. An optional terrace is also available. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Summary:

These substantial log cabins are available in 3 widths and 5 lengths. The widths are 12' (3.6m), 14' (4.2m) or 16' (4.8m) wide. The lengths are 8' (2.4m), 10' (3.0m), 12' (3.6m), 14' (4.2m) or 16' ( 4.8m) long. Features include a choice of 28mm, 34mm, 45mm or 70mm thick wall logs. The prices include roofing felt. Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include double glazing, roof insulation and floor insulation. Features include panoramic low level glazing with fully glazed double doors and two opening front windows. An optional terrace is also available. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Back to the Top
  • Choice of 28mm, 34mm, 45mm or 70mm thick wall logs, 28mm and 34mm thick wall logs are single tongued and grooved, 45mm and 70mm thick wall logs are double tongued and grooved
  • All timber used in the construction of this log cabin originates from sustainable forests
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Mortice lock with handles and keys
  • Single glazed horticultural glass included
  • Front canopy roof projection
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Log cabins with 34mm, 45mm or 70mm logs only

  • Double hinged doors
  • Overall door frame size 1.561m wide x 1.945m high (5'1" x 6'5")
  • Door size 1.421m wide x 1.805m high (4'8" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • 2 fully opening front windows
  • Overall window frame size 0.813m wide x 1.351m high (2'8" x 4'5")
  • Window size 0.633m wide x 1.171m high (2'1" x 3'11")
  • 20mm tongued and grooved floor boards
  • 20mm tongued and grooved roof boards
  • 135mm x 45mm planed roof purlins
  • 38kg green mineral felted roof

Log cabins with 28mm logs only

  • Double hinged doors
  • Overall door frame size 1.5m wide x 1.877m high (4'11" x 6'2")
  • Door size 1.36m wide x 1.737m high (4'6" x 5'8")
  • Approximate head clearance 1.787m high (5'10")
  • 2 fully opening front windows
  • Overall window frame size 0.813m wide x 1.413m high (2'8" x 4'8")
  • Window size 0.633m wide x 1.233m high (2'1" x 4'1")
  • 16mm tongued and grooved floor boards
  • 16mm tongued and grooved roof boards
  • 70mm x 45mm planed roof purlins
  • 20kg green mineral felted roof

Cabin sizes and base sizes

  • External cabin width 3.59m, 4.19m or 4.79m (11'10", 13'9" or 15'9")
  • External cabin depth 2.39m, 2.99m, 3.59m, 4.19m or 4.79m (7'10", 9'10", 11'10", 13'9" or 15'9")
  • Minimum base width 3.4m, 4.0m or 4.6m (11'2", 13'1" or 15'1")
  • Minimum base depth cabin only 2.2m, 2.8m, 3.4m, 4.0m or 4.6m (7'2", 9'2", 11'2", 13'1" or 15'1")
  • Minimum base depth including terrace add 1.5m (4'11")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - LENGTH AND WIDTH: The sizes are listed alongside the price. These sizes do not include the terrace. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear including the door wall. The length refers to the side walls. The sizes listed are external wall sizes. These sizes do not including the roof overhang. Many other suppliers quote the overall roof size which is much larger.
