Georgian Apex Double Door Log Cabin 131 - Verandah

Georgian Apex Double Door Log Cabin 131 - Verandah
1
2
3

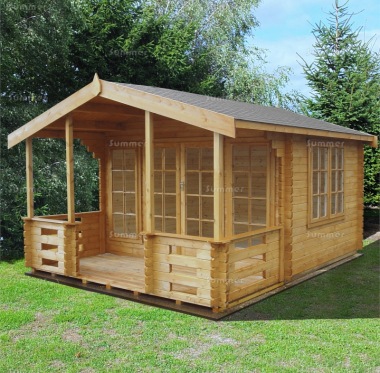

The pictures show the standard 3.6x3.0m cabin plus 1.5m verandah with optional 12 pane side window.

Summary:

Width 12' to 16' (3.6m to 4.8m). Overall depth 13' to 19' (3.9m to 5.7m) including 5' deep verandah (1.5m). Depth 8' to 14' (2.4m to 4.2m) excluding 5' deep verandah (1.5m). These quality log cabins include a verandah as standard and feature a choice of 28mm, 34mm, 45mm or 70mm thick wall logs. Other features include panoramic low level glazing with fully glazed double doors and 2 opening front windows. The ridge height is under 2.5 metres high to avoid planning restrictions. Double glazing and felt tiles are available as options. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Summary:

Width 12' to 16' (3.6m to 4.8m). Overall depth 13' to 19' (3.9m to 5.7m) including 5' deep verandah (1.5m). Depth 8' to 14' (2.4m to 4.2m) excluding 5' deep verandah (1.5m). These quality log cabins include a verandah as standard and feature a choice of 28mm, 34mm, 45mm or 70mm thick wall logs. Other features include panoramic low level glazing with fully glazed double doors and 2 opening front windows. The ridge height is under 2.5 metres high to avoid planning restrictions. Double glazing and felt tiles are available as options. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Back to the Top
  • Choice of 28mm, 34mm, 45mm or 70mm thick wall logs, 28mm and 34mm thick wall logs are single tongued and grooved, 45mm and 70mm thick wall logs are double tongued and grooved
  • All timber used in the construction of this log cabin originates from sustainable forests
  • 1.5m deep enclosed verandah (5'0") with balustrade to the sides and front and strong 25mm thick pressure treated decking (lifetime preservative treatment)
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • Panoramic window design with large window area at the front
  • Morticed and tenoned joinery doors and windows
  • Mortice lock with handles and keys
  • Double hinged doors
  • All log cabins include 2 fully opening front windows
  • Single glazed horticultural glass included

Log cabins with 34mm, 45mm or 70mm logs only

  • 20mm tongued and grooved floor boards
  • 20mm tongued and grooved roof boards
  • 135mm x 45mm planed roof purlins
  • 38kg green mineral felted roof
  • Double hinged doors
  • Overall door frame size 1.561m wide x 1.945m high (5'1" x 6'5")
  • Door size 1.421m wide x 1.805m high (4'8" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • All log cabins include 2 fully opening front windows
  • Overall window frame size 0.813m wide x 1.718m high (2'8" x 5'8")
  • Window size 0.633m wide x 1.538m high (2'1" x 5'1")
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Log cabins with 28mm logs only

  • 16mm tongued and grooved floor boards
  • 16mm tongued and grooved roof boards
  • 70mm x 45mm planed roof purlins
  • 20kg green mineral felted roof
  • Double hinged doors
  • Overall door frame size 1.5m wide x 1.877m high (4'11" x 6'2")
  • Door size 1.36m wide x 1.737m high (4'6" x 5'8")
  • Approximate head clearance 1.787m high (5'10")
  • All log cabins include 2 fully opening front windows
  • Overall window frame size 0.625m wide x 1.8m high (2'1" x 5'11")
  • Window size 0.445m wide x 1.62m high (1'6" x 5'4")

Cabin sizes and base sizes

  • External cabin width 3.59m, 4.19m or 4.79m (11'9", 13'9" or 15'9")
  • External cabin depth 2.39m, 2.99m, 3.59m or 4.19m (7'10", 9'10", 11'9" or 13'9")
  • Minimum base width 3.4m, 4.0m or 4.6m (11'2", 13'1" or 15'1")
  • Minimum base depth cabin only 2.2m, 2.8m, 3.4m or 4.0m (7'2", 9'2", 11'2" or 13'1")
  • Minimum base depth including verandah add 1.5m (4'11")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - LENGTH AND WIDTH: The overall sizes including the verandah are listed alongside the price. These sizes include the verandah. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear including the door wall. The length refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
