Georgian Apex Single Door 28mm Log Cabin 128

Georgian Apex Single Door 28mm Log Cabin 128
1
2
3

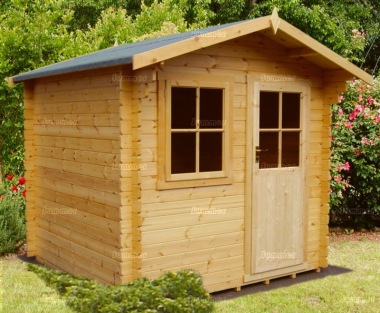

The pictures show the standard 2.4m x 2.4m log cabin.

Summary:

These sturdy log cabins are available in 3 widths and 5 depths. The widths are 8' (2.4m), 10' (3.0m) or 12' (3.6m). The depths are 8' (2.4m), 10' (3.0m), 12' (3.6m), 14' (4.2m) or 16' (4.8m). Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include a 4'3" (1.3m) deep terrace or fully enclosed verandah and double glazing. Features include 28mm thick wall logs, a single door and 1 opening front window. The floor and roof are attractive and durable tongued and grooved boards. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Summary:

These sturdy log cabins are available in 3 widths and 5 depths. The widths are 8' (2.4m), 10' (3.0m) or 12' (3.6m). The depths are 8' (2.4m), 10' (3.0m), 12' (3.6m), 14' (4.2m) or 16' (4.8m). Roof options include felt tiles, genuine cedar shingles and granular steel roof tiles. Other options include a 4'3" (1.3m) deep terrace or fully enclosed verandah and double glazing. Features include 28mm thick wall logs, a single door and 1 opening front window. The floor and roof are attractive and durable tongued and grooved boards. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Back to the Top
  • 28mm thick tongued and grooved wall logs
  • All timber used in the construction of this log cabin originates from sustainable forests
  • 16mm thick tongued and grooved roof boards (finished size after machining)
  • 16mm thick tongued and grooved floor boards (finished size after machining)
  • 70mm x 45mm planed roof purlins
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Mortice lock with handles and keys
  • Single hinged door
  • Overall door frame size 0.81m wide x 1.877m high (2'8" x 6'2")
  • Door size 0.67m wide x 1.737m high (2'2" x 5'8")
  • Approximate head clearance 1.787m high (5'10")
  • All log cabins include 1 fully opening front window
  • Overall window frame size 0.813m wide x 0.985m high (2'8" x 3'3")
  • Window size 0.633m wide x 0.805m high (2'1" x 2'8")
  • Single glazed horticultural glass included
  • 20kg green mineral felted roof
  • Front canopy roof projection approximately 0.4m (1'4")
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Cabin sizes and base sizes

  • External cabin width 2.39m, 2.99m or 3.59m (7'10", 9'10" or 11'9")
  • External cabin depth 2.39m, 2.99m, 3.59m, 4.19m or 4.79m (7'10", 9'10", 11'9", 13'9" or 15'9")
  • Minimum base width 2.2m, 2.8m or 3.4m (7'3", 9'2" or 11'2")
  • Minimum base depth 2.2m, 2.8m, 3.4m, 4.0m or 4.6m (7'3", 9'2", 11'2", 13'1" or 15'1")
  • For log cabins with terrace add 1.3m or 4'3" to all depth dimensions

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - LENGTH AND WIDTH: The sizes are listed alongside the price. These sizes do not include the optional verandah. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear including the door wall. The length refers to the side walls. The sizes listed are external wall sizes. These sizes do not including the roof overhang. Many other suppliers quote the overall roof size which is much larger.
