Georgian Single Door Pent Roof Log Cabin 127

Georgian Single Door Pent Roof Log Cabin 127
1
2
3
4
5

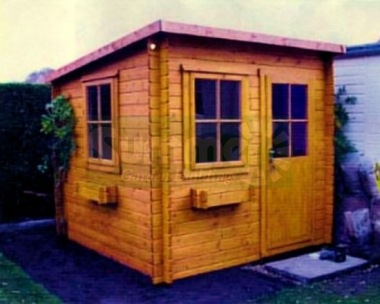

The pictures show the log cabin with optional side window and window boxes. Pictures 1 and 2 show what may be achieved using coloured preservatives.

Summary:

Depth from 8' to 14' (2.4m to 4.2m). Width from 8' to 18' (2.4m to 5.3m). These substantial log cabins feature a choice of 28mm, 34mm, 45mm or 70mm thick logs with optional double glazing and a durable one piece EPDM rubber roof membrane. Other features include a low profile pent roof, a single hinged door and 1 opening front window. The floor and roof are attractive and durable tongued and grooved boards. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Summary:

Depth from 8' to 14' (2.4m to 4.2m). Width from 8' to 18' (2.4m to 5.3m). These substantial log cabins feature a choice of 28mm, 34mm, 45mm or 70mm thick logs with optional double glazing and a durable one piece EPDM rubber roof membrane. Other features include a low profile pent roof, a single hinged door and 1 opening front window. The floor and roof are attractive and durable tongued and grooved boards. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 12th December.

Back to the Top
  • Choice of 28mm, 34mm, 45mm or 70mm thick wall logs, 28mm and 34mm thick wall logs are single tongued and grooved, 45mm and 70mm thick wall logs are double tongued and grooved
  • All timber used in the construction of this log cabin originates from sustainable forests
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Mortice lock with handles and keys
  • Single glazed horticultural glass included
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Log cabins with 34mm, 45mm or 70mm logs only

  • Part glazed single hinged door
  • Overall door frame size 0.845m wide x 1.945m high (2'9" x 6'5")
  • Door size 0.705m wide x 1.805m high (2'4" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • 1 fully opening front window
  • Overall window frame size 0.813m wide x 0.985m high (2'8" x 3'3")
  • Window size 0.633m wide x 0.805m high (2'1" x 2'8")
  • 20mm tongued and grooved floor boards
  • 20mm tongued and grooved roof boards
  • 135mm x 45mm planed roof purlins
  • 38kg green mineral felted roof

Log cabins with 28mm logs only

  • Part glazed single hinged door
  • Overall door frame size 0.81m wide x 1.877m high (2'8" x 6'2")
  • Door size 0.67m wide x 1.737m high (2'2" x 5'8")
  • Approximate head clearance 1.787m high (5'10")
  • 1 fully opening front window
  • Overall window frame size 0.813m wide x 0.985m high (2'8" x 3'3")
  • Window size 0.633m wide x 0.805m high (2'1" x 2'8")
  • 16mm tongued and grooved floor boards
  • 16mm tongued and grooved roof boards
  • 70mm x 45mm planed roof purlins
  • 20kg green mineral felted roof

Cabin sizes and base sizes

  • External cabin depth 2.39m, 2.99m, 3.59m or 4.19m (7'10", 9'10", 11'10" or 13'9")
  • External cabin width 2.39m, 2.99m, 3.59m, 4.19m, 4.79m or 5.34m (7'10", 9'10", 11'10", 13'9", 15'9" or 17'6")
  • Minimum base depth 2.2m, 2.8m, 3.4m or 4.0m (7'3", 9'2", 11'2" or 13'1")
  • Minimum base width 2.2m, 2.8m, 3.4m, 4.0m, 4.6m or 5.15m (7'2", 9'2", 11'2", 13'1", 15'1" or 16'11")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sloping wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
