Georgian Apex Double Door 28mm Log Cabin 125

Georgian Apex Double Door 28mm Log Cabin 125
1
2
3

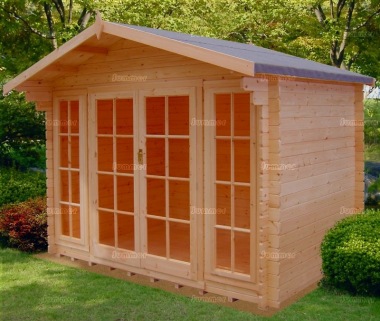

The pictures show the standard 3.0m x 1.8m log cabin.

Summary:

These apex roof log cabins are available in 2 widths and 6 lengths. The widths are 10' (3.0m) or 12' (3.6m). The lengths are 6' (1.8m), 8' (2.4m), 10' (3.0m), 12' (3.6m), 14' (4.2m) or 16' (4.8m) long. Features include 28mm thick wall logs, double doors and sidelights to provide a panoramic window design. Also included are an attractive and durable tongued and grooved floor and roof and toughened safety glass. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Summary:

These apex roof log cabins are available in 2 widths and 6 lengths. The widths are 10' (3.0m) or 12' (3.6m). The lengths are 6' (1.8m), 8' (2.4m), 10' (3.0m), 12' (3.6m), 14' (4.2m) or 16' (4.8m) long. Features include 28mm thick wall logs, double doors and sidelights to provide a panoramic window design. Also included are an attractive and durable tongued and grooved floor and roof and toughened safety glass. The ridge height is under 2.5 metres high to avoid planning restrictions. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 19th December.

Back to the Top
  • 28mm thick tongued and grooved wall logs
  • All timber used in the construction of this log cabin originates from sustainable forests
  • 16mm thick tongued and grooved roof boards (finished size after machining)
  • 16mm thick tongued and grooved floor boards (finished size after machining)
  • 70mm x 45mm planed roof purlins
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Mortice lock with handles and keys
  • Double hinged doors
  • Overall door frame size 1.5m wide x 1.877m high (4'11" x 6'2")
  • Door size 1.36m wide x 1.737m high (4'6" x 5'8")
  • Approximate head clearance 1.787m high (5'10")
  • All log cabins include 2 non opening front sidelight windows
  • Overall window frame size 0.625m wide x 1.8m high (2'1" x 5'11")
  • Window size 0.445m wide x 1.62m high (1'6" x 5'4")
  • Panoramic window design with large window area at the front
  • Toughened safety glass to BS6206A included as standard
  • 20kg green mineral felted roof
  • Front canopy roof projection approximately 0.4m (1'4")
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Cabin sizes and base sizes

  • External cabin width 2.99m or 3.59m (9'10" or 11'9")
  • External cabin depth 1.79m, 2.39m, 2.99m, 3.59m, 4.19m or 4.79m (5'10", 7'10", 9'10", 11'9", 13'9" or 15'9")
  • Minimum base width 2.8m or 3.4m (9'2" or 11'2")
  • Minimum base depth 1.6m, 2.2m, 2.8m, 3.4m, 4.0m or 4.6m (5'3", 7'3", 9'2", 11'2", 13'1" or 15'1")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

TOUGHENED SAFETY GLASS: Toughened safety glass is around 6 times stronger than normal glass so it is less likely to break. When it does break, toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the depth. The width refers to the angled gable walls at the front and rear including the door wall. The depth refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
