Large Aluminium Orangery 342 - Valley Roof, Box Section

Large Aluminium Orangery 342 - Valley Roof, Box Section
1
2
3
4
5
6
7

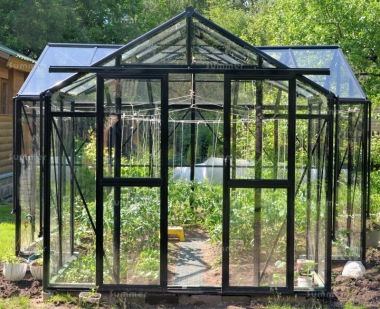

Pictures 1 and 2 show the standard greenhouse. Pictures 3, 4, 5 and 6 show the greenhouse with optional staging and ridge crests.

Summary:

Overall size 10'6"x12'4" including the front projection. The size excluding the front projection is 8'4"x12'4". These incredible value greenhouses feature a decorative valley roof design with a T shape ridge and luxury features at a surprisingly affordable price. The frame is black powder coated aluminium with box section profiles throughout. The sophisticated glazing system features smart and strong aluminium bar capping. The glazing is toughened safety glass as standard with no overlapping glass. Standard features include lockable double sliding doors to provide access and 4 roof vents to provide ventilation. Guttering with 6 downpipes are also included. Options include ridge cresting, staging and automatic openers. Detailed fitting instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 17th October.

Summary:

Overall size 10'6"x12'4" including the front projection. The size excluding the front projection is 8'4"x12'4". These incredible value greenhouses feature a decorative valley roof design with a T shape ridge and luxury features at a surprisingly affordable price. The frame is black powder coated aluminium with box section profiles throughout. The sophisticated glazing system features smart and strong aluminium bar capping. The glazing is toughened safety glass as standard with no overlapping glass. Standard features include lockable double sliding doors to provide access and 4 roof vents to provide ventilation. Guttering with 6 downpipes are also included. Options include ridge cresting, staging and automatic openers. Detailed fitting instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 17th October.

Back to the Top
  • Decorative roof design with 2 roof valleys and T shape ridge
  • Black powder coated aluminium framing
  • Box section aluminium framing throughout with hollow chambers to provide greater strength and rigidity
  • Box section glazing bars, corner posts, cills, eaves beams, ridge beam, door frames and vent frames
  • Box section cills make a separate base plinth unnecessary, which makes installation easier
  • Clip free glazing system with bar capping to hold the glazing in position more securely
  • Black powder coated aluminium bar capping
  • Door capping and vent capping feature attractive mitred corners
  • Bar capping securely retained with discreet fixings on the inside
  • Pre-drilled holes make fixing the bar capping easy
  • Frame profiles and bar capping feature a decorative reeded finish
  • Heavy duty quadruple wheel door rollers with 8 wheels for better performance and durability
  • Push fit cill corner connectors are smart, strong and easy to fit
  • Push fit gable connectors ensure greater strength
  • Click fit aluminium corner connectors ensure stronger doors and roof vents
  • Integral gutter with 6 downpipes included as standard
  • Base fixing kit included with heavy duty anchor brackets and expanding bolts
  • Door handle with lock included - the door can be fixed in a closed position
  • Double sliding doors
  • 4 free opening roof vents
  • Opening roof vents include manual openers with casement stays and pins - the vents can be fixed in a closed position
  • Eaves height 5'7" (1700mm)
  • Ridge height 8'2" (2500mm)
  • Door height approximately 6'4" (1940mm)
  • Door width 3'11" (1200mm)
  • Overall depth 10'6" (3190mm)
  • Overall width 12'4" (3770mm)

THIS PREMIUM QUALITY GREENHOUSE: These well engineered aluminium greenhouses feature black powder coated frames with toughened safety glass at surprisingly affordable prices. These greenhouses are always in stock and the price includes free next day delivery. From a technical viewpoint this greenhouse is heavier and more rigid than others at similar prices and the glazing is held in better. The precise manufacturing and careful packing is a match for our most expensive greenhouses. Sophisticated features include box section framing throughout with smart and strong aluminium bar capping. The competitive price and fast delivery ensure that this greenhouse is an ever popular choice.

EXTRA RIGIDITY: This greenhouse is heavier than most other greenhouses with box section framing throughout. Box section frame profiles feature a hollow chamber for additional strength. It is not just the ridge and eaves which are box section but also the corner posts, cills and glazing bars. Even the door and vent framing are box section profiles. The strength of the eaves and ridge is significantly improved by simple push fit corner connectors. In addition, specially designed corner brackets ensure that the vent frame and door framing are stronger.

ALUMINIUM BAR CAPPING: The decorative aluminium glazing beads are more attractive than other greenhouses but they also retain the glazing better. The unique glazing design ensures that the glass is securely fixed in place continuously along every edge including the top and bottom edges. With most greenhouses the glazing is retained along the vertical edges only and the top and bottom edges receive little or no attention. The glass is retained along the entire length of the framing. As a result, when the frame is fully assembled the glass is more securely fixed. The unique aluminium beads clip into a groove in the aluminium glazing bars. The tight fit ensures that the glass/glazing is retained without fixings but the real strength comes from discreet self tapping screws which are fitted on the inside. The holes are predrilled so this important task is quickly and easily completed. The screws are partially concealed within a groove in the framing. The result is the strongest and neatest greenhouse glazing system we have ever seen in any greenhouse.

STRONGER GABLE WALL GLAZING: The tallest glazing panels are divided in two for added strength. One piece panels are more likely to flex and spring out in winds. Strong aluminium glazing bars at the horizontal joints provide additional rigidity, unlike the plastic jointing profiles used by some others. The grooves in the horizontal glazing bars ensure that the glazing is retained more securely.

UNRIVALLED BRACING: The kit includes optional horizontal braces, diagonal braces, eaves struts and ridge struts. The braces and struts are recommended at exposed sites. At less exposed sites the braces and struts are not essential if you prefer an uncluttered design. All of the braces and struts can be easily fitted or removed retrospectively if you change your mind.

POWDER COATED ALUMINIUM: The powder coated finish is more attractive than the stark silver finish aluminium greenhouses. The tough finish also has excellent weathering properties and retains its gloss and colour superbly. A good example of powder coating is the finish on your washing machine. Powder coated aluminium greenhouses have a similar finish.

STRUCTURAL CILLS: This greenhouse includes low profile structural cills. A separate base plinth is not required. Structural cills are designed to suit a low threshold doorway. They are stronger than normal greenhouse cills with a lower profile than a traditional base plinth. Structural cills feature a flat underside to spread the weight of the greenhouse over a larger area. They can be placed on concrete, paving slabs, bricks or decking but structural cills should not be placed on soil or gravel.

GREENHOUSE LOCATION: Ideally your greenhouse should have a clear space at least 18" wide on all sides, if possible. This ensures easy access for both installation and future maintenance. In reality this is often not practical and at many sites it is not needed. A reduced clearance is often possible on one or two sides. You should cut back or remove any nearby shrubs and trees. Remember to allow for future growth. Ideally the ridge of a greenhouse should run from east to west. The best position for a freestanding greenhouse is a sunny spot outside the shadow of nearby buildings and trees. A sheltered position is best otherwise additional screening may be advisable. Plants need plenty of water so your greenhouse should be close to a water supply and the site should be well drained.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the overall depth including the front projection. The width refers to the front and rear walls including the door wall. The sizes listed are the external wall sizes.
