45mm Pent Roof Gazebo 621 - With Integral Summerhouse, Dovetail Joints
1
2
3
4
Play Video

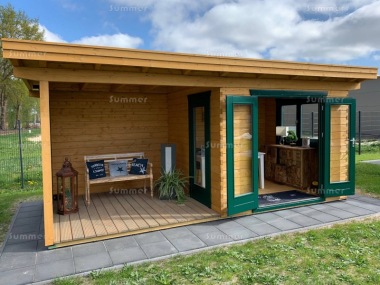

The pictures show the standard gazebo. The pictures show what may be achieved using coloured preservatives. The timber decking shown in the gazebo is not available.

Summary:

This premium quality pent roof gazebo is approximately 8'2"x17'5" (2.5mx5.3m) and features 45mm thick wall logs and low level double glazing as standard. The price includes a large fully boarded rear canopy with an integral 8'2" (2.5m) wide summerhouse. The summerhouse includes a fully glazed 2 pane double door, panoramic full height side window, and double half height opening window. The gazebo also features a full height wide glazed window. These gazebos feature attractive fascias to all sides and a unique dovetail style corner log joint which is strong and weatherproof. The summerhouse features internal skirting boards and an aluminium door threshold. Options include a one piece EDPM rubber roof covering and floor and roof insulation. Factory finished preservative treatment is also available as optional upgrade. Detailed fitting instructions are supplied for DIY self assembly. Low cost installation is available in many areas.

Click here to see our Log Cabin Stock List with fast delivery

Back to the Top
  • All timber used in the construction of this gazebo originates from sustainable forests
  • Interlocking 45mm thick double tongued and grooved wall logs
  • Superior interlocking dovetail joints
  • Partitions create an integral summerhouse with panoramic large pane glazing
  • Canopy includes fully boarded rear and side walls
  • Pressure treated foundation beams 60mm x 80mm (lifetime preservative treatment)
  • Pressure treated floor joists 60mm x 80mm (lifetime preservative treatment)
  • Substantial 21mm thick tongued and grooved timber floor boards to the summerhouse (finished size after machining)
  • Strong timber decking boards to the canopy
  • Strong 19mm thick tongued and grooved roof boards (finished size after machining)
  • Strong 80mm x 160mm roof purlins (finished size after machining)
  • Premium double glazed doors and windows with rubber weatherstrips to reduce draughts
  • Doors and windows are joinery made with fully profiled timbers and morticed and tenoned joints throughout
  • Double hinged doors, fully glazed with high security mortice lock and lever handles
  • Double doors approximately 4'11" wide x 6'4" high (1500mm x 1940mm)
  • Durable metal door threshold
  • Chrome plated door and window handles
  • Internal skirting boards to summerhouse
  • Large non opening window in canopy side wall approximately 4'7" wide x 6'4" high (1400mm x 1940mm)
  • Full height non opening window between gazebo and summerhouse approximately 2'6" wide x 6'4" high (750mm x 1940mm)
  • Double opening window in summerhouse side wall approximately 4'7" wide x 3'4" high (1400mm x 1020mm)
  • Substantial timber fascia boards
  • Overall external building size approximately 8'2" deep x 17'5" wide (2.5x5.3m)
  • Overall roof size approximately 10'2" deep x 19'4" wide (3.1x5.9m)
  • External summerhouse size approximately 8'2" deep x 9'2" wide (2.5x2.8m)
  • External canopy size approximately 8'2" deep x 8'2" wide (2.5x2.5m)
  • Minimum base size 8'2" deep x 17'5" wide (2.5x5.3m)
  • Eaves height approximately 7'2" (2180mm)
  • Ridge height approximately 7'6" (2250mm)
  • This building is easy to deliver if access is restricted - all sections will pass through a normal single door

LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation, which is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Where available, double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less production time.

NORDIC SPRUCE: This building is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.

NATURAL WOOD: First, high grade timber is dried in kilns until it reaches the optimum moisture content, then it is planed smooth and machined into tongued and grooved logs and boards. Next the logs are precisely machined at the ends to ensure a precise fit. Finally, each cabin is carefully packed and wrapped. When you unwrap it the wood is untreated. We recommend treating it only after the cabin has been successfully installed and ideally within a week or two. Treating the logs before fitting may cause the wood to swell up and the logs may not fit together correctly. If you are fitting your cabin in a restricted space where future access will be difficult you can stain the logs during installation by reaching down a few logs at a time as you fit them.

INTERLOCKING LOG CORNERS WITH DOVETAIL JOINTS: These log cabins feature interlocking corner logs with substantial dovetail joints. Each wall log is precisely machined to ensure a strong and weatherproof joint. Additional strength and stability is provided by wooden dowels and threaded rods which are inserted into predrilled holes in the tops of the logs. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. As each log is laid, a screw is inserted through the top of the corner joint to connect it to the one below. The finished corner assembly is not only immensely strong but also weatherproof and draughtproof. If possible cabins with interlocking logs should be treated after assembly. Treating the logs on site before fitting requires considerable care. If swollen the precision milled joints may not slot together.

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

HIGH PERFORMANCE DOORS AND WINDOWS WITH WEATHERSTRIPS: Our high performance premium window and door frames feature weatherstrips to reduce draughts. Weatherstrips are rubber gaskets which are fitted to the door and window frames. The weatherstrips are fitted in the rebates between the fixed outer frames and the hinged parts i.e. the window sashes and door leaves. As the doors and windows are closed the weatherstrips are compressed to form a seal. Heat loss is significantly lower through windows and doors which are fitted with weatherstrips.

DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.

WEATHERPROOF DOUBLE GROOVED LOGS: Thinner wall logs feature a single tongue and groove but thicker logs feature a double tongue and groove. The double tongue and groove provides a stronger and more weatherproof joint. Thicker logs also provide improved insulation.

CHAMFERRED TOP WALL LOGS: This high specification building features a subtle quality feature. The top log in each side wall is chamferred to the same angle as the roof slope. This little detail provides much improved insulation and draughtproofing. It also provides a much neater internal appearance and the roof boards are easier to fix. This simple design feature eliminates an obvious cold spot. The benefits of this feature are magnified if roof insulation is specified.

LOW LEVEL GLAZING: Low level glazing provides a panoramic view from inside your garden room so you can appreciate your garden fully. With low level glazing you can enjoy a better view of the garden, especially at sites where the garden slopes away.

HEAVY DUTY TONGUED AND GROOVED FLOOR: This cabin includes a heavy duty timber floor with tongued and grooved floor boards and substantial floor joists. Skirting boards are also included to ensure a neat internal finish. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits, all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins the boards must be cut to fit on site. This takes much longer and many of the joins are visible afterwards.

METAL DOOR THRESHOLD: A weatherproof metal threshold is included to provide sustained access for heavy items such as ride on mowers and motorbikes. Without a metal threshold the wooden frame is vulnerable to wear and the elements. Over time a metal threshold will extend the effective lifespan of the door.

PRESSURE TREATED FOUNDATION BEAMS: Substantial foundation beams are laid on the base to support the walls. This ensures that the wall logs are not in contact with the ground. The foundation beams are pressure treated for durability. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. With the foundation beams this log cabin can be built without a floor if required.

SIZES - LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sides. The width refers to the fully boarded rear wall. All sizes quoted are the external gazebo sizes and do not include any roof overhang, unless stated otherwise. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.
