Click to watch the Summer Garden Buildings video about GAZEBOS

Wooden Apex Gazebo 698 - With Integral Summerhouse

Wooden Apex Gazebo 698 - With Integral Summerhouse
1
2
3
4

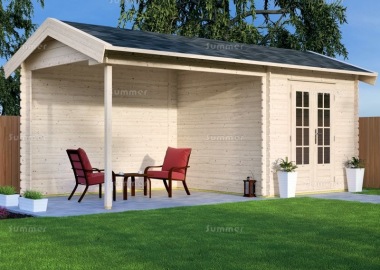

Pictures 1 and 2 show the standard 9'10"x23'0" (3.0x7.0m) gazebo. Picture 3 shows the 9'10"x18'1" (3.0x5.5m) gazebo with optional colour painted finish.

Summary:

These quality wooden gazebos are available in sizes between approximately 8'x18' and 15'x23' (2.5x5.5m and 4.5x7.0m) overall. The price includes a large canopy and an integral 10' (3.0m) wide summerhouse with double doors and Georgian glazing. Standard luxury features include double glazing and a fully boarded rear wall in 28mm or 45mm thick wall logs. The summerhouse features a heavy duty timber floor, internal skirting boards and an aluminium door threshold. Decorative felt tiles and 19mm thick tongued and grooved roof boards are also included. Factory finished preservative treatment is available as an option. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 25th September.

Summary:

These quality wooden gazebos are available in sizes between approximately 8'x18' and 15'x23' (2.5x5.5m and 4.5x7.0m) overall. The price includes a large canopy and an integral 10' (3.0m) wide summerhouse with double doors and Georgian glazing. Standard luxury features include double glazing and a fully boarded rear wall in 28mm or 45mm thick wall logs. The summerhouse features a heavy duty timber floor, internal skirting boards and an aluminium door threshold. Decorative felt tiles and 19mm thick tongued and grooved roof boards are also included. Factory finished preservative treatment is available as an option. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas.

Prices fixed until Wednesday 25th September.

Back to the Top
  • All timber used in the construction of this log cabin originates from sustainable forests
  • 8' deep gazebos include a summerhouse approximately 8'2" deep x 9'10" wide (2.5x3.0m)
  • 10' deep gazebos include a summerhouse approximately 9'10" deep x 9'10" wide (3.0x3.0m)
  • 12' deep gazebos include a summerhouse approximately 11'6" deep x 9'10" wide (3.5x3.0m)
  • 13' deep gazebos include a summerhouse approximately 13'1" deep x 9'10" wide (4.0x3.0m)
  • 15' deep gazebos include a summerhouse approximately 14'9" deep x 9'10" wide (4.5x3.0m)
  • 8'x18' gazebos include a canopy approximately 8'2" deep x 8'2" wide (2.5x2.5m)
  • 8'x20' gazebos include a canopy approximately 8'2" deep x 9'10" wide (2.5x3.0m)
  • 8'x21' gazebos include a canopy approximately 8'2" deep x 11'6" wide (2.5x3.5m)
  • 8'x23' gazebos include a canopy approximately 8'2" deep x 13'1" wide (2.5x4.0m)
  • 10'x18' gazebos include a canopy approximately 9'10" deep x 8'2" wide (3.0x2.5m)
  • 10'x20' gazebos include a canopy approximately 9'10" deep x 9'10" wide (3.0x3.0m)
  • 10'x21' gazebos include a canopy approximately 9'10" deep x 11'6" wide (3.0x3.5m)
  • 10'x23' gazebos include a canopy approximately 9'10" deep x 13'1" wide (3.0x4.0m)
  • 12'x18' gazebos include a canopy approximately 11'6" deep x 8'2" wide (3.5x2.5m)
  • 12'x20' gazebos include a canopy approximately 11'6" deep x 9'10" wide (3.5x3.0m)
  • 12'x21' gazebos include a canopy approximately 11'6" deep x 11'6" wide (3.5x3.5m)
  • 12'x23' gazebos include a canopy approximately 11'6" deep x 13'1" wide (3.5x4.0m)
  • 13'x18' gazebos include a canopy approximately 13'1" deep x 8'2" wide (4.0x2.5m)
  • 13'x20' gazebos include a canopy approximately 13'1" deep x 9'10" wide (4.0x3.0m)
  • 13'x21' gazebos include a canopy approximately 13'1" deep x 11'6" wide (4.0x3.5m)
  • 13'x23' gazebos include a canopy approximately 13'1" deep x 13'1" wide (4.0x4.0m)
  • 15'x18' gazebos include a canopy approximately 14'9" deep x 8'2" wide (4.5x2.5m)
  • 15'x20' gazebos include a canopy approximately 14'9" deep x 9'10" wide (4.5x3.0m)
  • 15'x21' gazebos include a canopy approximately 14'9" deep x 11'6" wide (4.5x3.5m)
  • 15'x23' gazebos include a canopy approximately 14'9" deep x 13'1" wide (4.5x4.0m)
  • 28mm or 45mm thick tongued and grooved wall logs (finished size after machining)
  • Partition to create an integral summerhouse area
  • Canopy includes a plain fully boarded rear wall as standard
  • Strong 90mm x 90mm post with angled braces and pressure treated feet
  • The roof is supplied unassembled with the rafters and roof boards cut to size
  • 19mm thick tongued and grooved roof boards (finished size after machining)
  • Decorative mineral felt tiles in a choice of colours included as standard
  • Substantial timber fascia boards
  • Doors glazed with glass (no plastic, acrylic, styrene or perspex)
  • Premium double glazed doors with rubber weatherstrips to reduce draughts
  • Doors are joinery made with fully profiled timbers and morticed and tenoned joints throughout
  • Optional Georgian glazing beads, which can be removed or left out if you prefer contemporary plain glazing
  • Double hinged doors, fully glazed with high security mortice lock and lever handles
  • Double doors 4'0" wide x 6'4" high (1210mm x 1935mm)
  • Durable aluminium door threshold
  • Chrome plated door handles
  • Foundation beams ex 3"x2" (70mm x 45mm) pressure treated (lifetime preservative treatment)
  • Substantial 19mm thick tongued and grooved timber floor boards (finished size after machining) in the summerhouse
  • Floor joists ex 3" x 2" (70mm x 45mm) pressure treated (lifetime preservative treatment)
  • Internal skirting boards
  • Weatherproof L-shaped double fascia boards to front and rear
  • Eaves height approximately 7'9" (2.36m)
  • Ridge height varies according to depth of gazebo
  • Ridge height approximately 9'5" (2.86m) on 8'2" (2.5m) deep gazebos
  • Ridge height approximately 9'8" (2.95m) on 9'10" (3.0m) deep gazebos
  • Ridge height approximately 10'0" (3.04m) on 11'6" (3.5m) deep gazebos
  • Ridge height approximately 10'3" (3.13m) on 13'1" (4.0m) deep gazebos
  • Ridge height approximately 10'7" (3.22m) on 14'9" (4.5m) deep gazebos
  • External roof overhang approximately 12" to all sides (300mm)
  • This building is easy to deliver if access is restricted - all sections will pass through a normal single door

DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. This ensures that every tile is stuck to the tile below within a few days for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.

DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.

HEAVY DUTY TONGUED AND GROOVED FLOOR: This cabin includes a heavy duty timber floor with tongued and grooved floor boards and substantial floor joists. Skirting boards are also included to ensure a neat internal finish. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits, all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins the boards must be cut to fit on site. This takes much longer and many of the joins are visible afterwards.

PRESSURE TREATED FOUNDATION BEAMS: Substantial foundation beams are laid on the base to support the walls. This ensures that the wall logs are not in contact with the ground. The foundation beams are pressure treated for durability. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. With the foundation beams this log cabin can be built without a floor. If required a timber or concrete floor can be laid inside after the walls and roof have been fitted.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are external wall sizes. These sizes do not include the roof overhang. Many others quote the overall roof size which is much larger.
