Apex Metal Shed 526 - Hinged Doors, Extra Tall, Galvanized Steel
1
2
3
4
5
6
7
8
9
10
Play Video

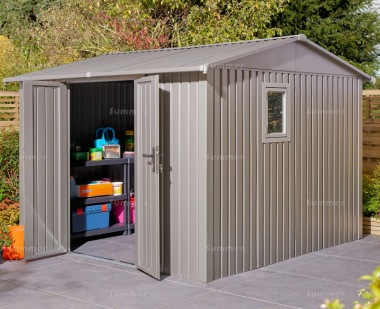

The pictures show the standard 10'x10' shed.

Summary:

This premium quality metal shed is 10'0" deep x 9'8" wide (3040mm x 2960mm) overall with an attractive metallic grey coloured external finish. Heavier and more substantial than most other comparable metal sheds, all framing and cladding is hot dip galvanized steel. The cladding and door are also resin coated on both sides. The hinged double doors are in the 9'8" wide side wall and are approximately 5'10" high. Standard features include a durable level handle with cylinder key lock and an opening window. A low threshold doorway is included for easier access. The approximate external eaves height is a generous 6'2", making this considerably taller than the majority of metal sheds. Other quality features of this heavy duty metal shed include strong foundation rails and integral gutters with downspouts. Base anchor hammer fixings are supplied to ensure that your shed is fixed down securely. Options include a unique choice of base options including timber and plastic base kits. All fixings and instructions are included.

Back to the Top
  • Hot dip galvanized steel framing
  • Hot dip galvanized steel cladding panels with a tough epoxy resin coating inside and out
  • Attractive metallic grey colour inside and out
  • Hinged double doors approximately 3'6" wide x 5'10" high (1060x1780mm) in the 9'8" wide side wall
  • Lever door handle with cylinder key lock
  • Latches top and bottom of the slave door to keep it closed when not required
  • Doors feature dual layer construction for added rigidity
  • Side hinged opening window
  • Twist handle to keep the window latched closed when not open
  • Window frame magnet keeps window fully open against the shed wall when required
  • Cladding sheets are corrugated and ribbed for extra strength
  • Corner cladding sheets are folded ninety degrees and overlapped to provide a strong and waterproof corner joint
  • Triangular strengthening brackets in each corner
  • Low door threshold for easier access
  • Strong galvanized steel foundation rails
  • Concrete hammer fixings
  • Integral drainage channels with downspouts
  • External ridge height approximately 7'6" (2280mm)
  • Internal ridge height approximately 7'3" (2205mm)
  • External eaves height approximately 6'2" (1880mm)
  • External roof size approximately 10'0" deep x 9'8" wide (3040mm x 2960mm)
  • Minimum base size approximately 9'0" deep x 9'0" wide (2750mm x 2750mm)
  • This shed is easy to deliver if access is restricted - all sections are designed to pass through a normal single door

GALVANIZED STEEL CLADDING: These great value buildings are made with galvanized steel throughout. All framing and cladding is hot dip galvanized steel. This is a process by which steel is coated with zinc to protect it from corrosion. The cladding is subsequently coated with epoxy resin, partly to protect the zinc coating itself and partly to add colour. The factory finish is described as primer although a top coat is not normally needed. The combination of a zinc coating with epoxy resin provides durable protection even if the surface is scratched.

STRONG FRAMING: In common with all other steel buildings, including even the largest sports stadia, retail superstores and warehouses, steel cladding sheets are surprisingly thin. The strength of steel buildings is provided by the frame, although the corrugations of the cladding sheets do provide a degree of extra strength. These metal sheds feature strong galvanized steel framing members and the completed frame is rigid.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external sizes are listed alongside the price. The sizes listed alongside the prices are the external roof sizes. The external wall sizes may be smaller. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. All sizes are approximate.
