Shiplap Pent Shed 156 - Thicker Shiplap, Thicker Framing

Shiplap Pent Shed 156 - Thicker Shiplap, Thicker Framing
1
2
3

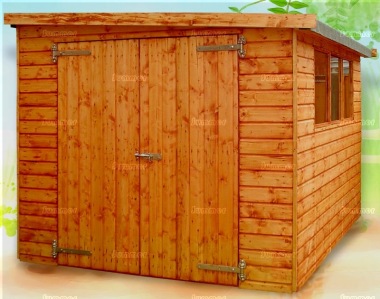

The pictures show the 8'x10' shed with optional double doors and preservative treatment. A key locking rim lock is now fitted as standard.

Summary:

These heavy duty pent roof sheds are available in 13 sizes. The depths available are 6' (1.8m), 7' (2.1m), 8' (2.4m), 10' (3.0m). The widths available are 8' (2.4m), 10' (3.0m), 12' (3.6m), 14' (4.2m), 16' (4.8m) or 18' (5.4m). Features include substantial 60mm x 50mm framing with thicker than normal 15mm tongued and grooved boards throughout - to the walls, floor and roof. With a minimum height of 6'6" at the lowest point inside, the doors can be positioned in the front or side. Options include double doors, partitions and toughened safety glass. Instructions are supplied and large prefabricated panels simplify the installation. We offer fitting as a low cost option in many areas.

Summary:

These heavy duty pent roof sheds are available in 13 sizes. The depths available are 6' (1.8m), 7' (2.1m), 8' (2.4m), 10' (3.0m). The widths available are 8' (2.4m), 10' (3.0m), 12' (3.6m), 14' (4.2m), 16' (4.8m) or 18' (5.4m). Features include substantial 60mm x 50mm framing with thicker than normal 15mm tongued and grooved boards throughout - to the walls, floor and roof. With a minimum height of 6'6" at the lowest point inside, the doors can be positioned in the front or side. Options include double doors, partitions and toughened safety glass. Instructions are supplied and large prefabricated panels simplify the installation. We offer fitting as a low cost option in many areas.

Back to the Top
  • Individually made to order
  • All timber used in the construction of this shed originates from sustainable forests
  • Framed, ledged and braced doors (with horizontal, diagonal and vertical framing)
  • Heavy duty galvanised hook and band hinges
  • Rim lock with keys fitted to all single doors
  • 3mm horticultural glass throughout
  • Heavy duty 15mm (ex 3/4") deal tongued and grooved shiplap cladding (finished size after machining)
  • Heavy duty 15mm (ex 3/4") deal tongued and grooved floor boards (finished size after machining)
  • Heavy duty 15mm (ex 3/4") deal tongued and grooved roof boards (finished size after machining)
  • Strong 60mm x 50mm fine sawn deal floor joists
  • Strong 60mm x 50mm fine sawn deal framework
  • Heavy duty green mineral felted roof
  • Door height 6'1" (1850mm)
  • Door width 2'7" (790mm)
  • Internal height at the rear 6'6" (1980mm)
  • Internal height at the front 6'11" (2100mm)
  • External ridge height at the front 7'7" (2300mm)
  • The number of windows varies based on building size and door position

QUALITY CONSTRUCTION: A feature of these quality sheds is the door frame with vertical, horizontal and diagonal framing. The windows are glazed with glass. Many sheds at similar prices include thin styrene glazing which provides little security or weather protection. Another feature is the substantial 2" thick framing, which ensures a more robust and durable building. The boarding is fully interlocked tongued and grooved throughout including the walls, floor and roof.

THICKER CLADDING: A feature of this heavy duty garden shed is thicker ex 3/4" cladding with a finished thickness of 15mm. The use of thinner cladding with a finished thickness of 12mm is almost universal throughout the industry. These 25% thicker boards are more substantial and longer lasting.

HEAVY DUTY FRAMING: These heavy duty garden sheds feature exceptionally strong framing, which ensures a more robust and durable building. Framing timber is normally supplied in standard timber sizes. The nominal size is the size before machining. The finished size after planing is normally around 5mm smaller. Framing of at least 50x25mm or 38x38mm nominal thickness is recommended for smaller garden sheds up to 6'x8'. Framing of at least 50x38m nominal thickness is recommended for larger garden sheds up to 8'x10'. Framing of 2"x2" or 50x50mm nominal thickness or larger is recommended for the largest garden sheds.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sloping wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
