Apex Metal Garage 386 - Roller Shutter Door, Galvanized Steel
Play Video

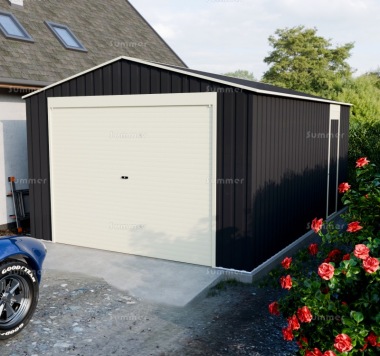

The pictures show the standard garage.


This great value metal garage is approximately 11'x17' with an attractive grey coloured external finish. Heavier than most other comparable metal garages, all framing and cladding is hot dip galvanized steel. The cladding is also resin coated on both sides. Strong foundation rails and integral gutters are included as standard. The main access to the garage is through a large roller shutter door with a clear opening size of approximately 8'2" wide x 6'2" high (2500mm wide x 1880mm high). A single hinged personnel door with padbolt is also supplied. The strong roof structure features substantial rafters along with 2 sturdy internal support frames with vertical stanchions and roof trusses with diagonal struts and braces. All fixings and instructions are included. Available accessories include shelves, tool racks and tool hooks.


Back to the Top
  • Hot dip galvanized steel framing
  • Hot dip galvanized steel cladding panels with a tough epoxy resin coating inside and out
  • Attractive grey colour to external cladding
  • Contrasting colour to gable fascias and door frame trims
  • Main roller shutter door with key lock
  • Door clear opening size approximately 8'2" wide x 6'2" high (2500x1880mm).
  • Single hinged personnel door with padbolt and pre-drilled hole to suit most padlocks
  • Cladding sheets are corrugated and ribbed for extra strength
  • Corner cladding sheets are folded ninety degrees and overlapped to provide a strong and waterproof corner joint
  • Horizontal framing
  • 2 sturdy internal support frames with vertical stanchions and roof trusses with diagonal struts and braces
  • Integral gutters
  • Main ridge beam
  • Intermediate roof purlins
  • Foundation rails
  • External ridge cover
  • Eaves height approximately 6'7" (2000mm)
  • Ridge height approximately 8'0" (2450mm)
  • This garage is easy to deliver if access is restricted - all sections are designed to pass through a normal single door
  • External size approximately 11'1" wide x 16'9" deep (3380mm x 5100mm)
  • Internal size approximately 10'10" wide x 16'5" deep (3300mm x 5000mm)
  • Overall weight 210kg - heavier than similar metal garages supplied by others

GALVANIZED STEEL CLADDING: These great value buildings are made with galvanized steel throughout. All framing and cladding is hot dip galvanized steel. This is a process by which steel is coated with zinc to protect it from corrosion. The cladding is subsequently coated with epoxy resin, partly to protect the zinc coating itself and partly to add colour. The factory finish is described as primer although a top coat is not normally needed. The combination of a zinc coating with epoxy resin provides durable protection even if the surface is scratched.

STRONG FRAMING: In common with all other steel buildings, including even the largest sports stadia, retail superstores and warehouses, steel cladding sheets are surprisingly thin. The strength of steel buildings is provided by the frame, although the corrugations of the cladding sheets do provide a degree of extra strength. These metal sheds feature strong galvanized steel framing members and the completed frame is rigid.

HEAVY PACKS: As a rough and ready rule, the heavier a metal building is the stronger it is. Our buildings are heavier than most similar metal buildings which is why we publish the weight. The packs are very heavy but surprisingly compact, especially the cladding sheets which are packed tightly together.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external sizes are listed alongside the price. The sizes listed alongside the prices are the external roof sizes. The external wall sizes may be smaller. The first dimension listed is the width and the second dimension is the depth. The width refers to the angled gable walls at the front and rear including the door wall. The depth refers to the side walls. All sizes are approximate.
