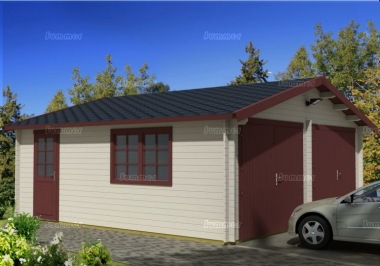

Wooden Log Garage 478 - Apex, Personnel Door
These premium quality wooden double garages are approximately 20' wide (5.95m) and 17', 19' or 21' long (5.3m, 5.8m or 6.3m) and feature 70mm thick wall logs. Roof options include insulation, untearable roofing felt, felt tiles, genuine cedar shingles and granular steel roof tiles. The price includes two double hinged main doors, a personnel door and a double opening side window with a choice of Georgian or contemporary plain glazing. The personnel door can be half glazed or fully boarded. Options include double glazing and additional doors and windows. The roof is attractive and durable 18mm thick tongued and grooved boards. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.
Prices fixed until Wednesday 26th February.
The prices INCLUDE DELIVERY. Unlike others we do not add delivery charges at the checkout. Everything you need for assembly is supplied including instructions, fixings and glazing. Our local INSTALLATION and BASELAYING services are also available in many postcode areas.
|Size||With 70mm Thick Logs||Double glazed personnel door and window||Untearable roofing felt||Decorative felt tiles||Traditional cedar shingles||Granular steel roof tiles||Roof insulation - to suit felt tiles or roofing felt||Roof insulation - to suit cedar shingles or steel tiles||Customisation charge|
|19'6" x 17'5"|
|19'6" x 19'|
|19'6" x 20'8"|
- All timber used in the construction of these log cabins originates from sustainable forests
- Interlocking 70mm thick tongued and grooved wall logs
- All logs double grooved for superior draughtproofing
- Strong 18mm thick tongued and grooved roof boards
- Pressure treated 28mm x 55mm foundation beams (lifetime preservative treatment)
- Morticed and tenoned joinery doors and windows
- Superior quality laminated timber doors and windows - less likely to twist or warp, more attractive than finger jointed timber
- 2 double hinged main doors 2.37m wide x 1.96m high (7'9" x 6'5")
- Double door clear opening height approximately 1870mm (6'2") including threshold - exact heights vary according to log thickness
- Double door clear opening width approximately 2200mm (7'3") - exact widths vary according to log thickness
- Single hinged personnel door 0.84m wide x 1.9m high (2'9" x 6'3")
- Mortice lock with handles and keys
- 1 side hinged tilt and turn double opening side window 1.53m wide x 0.99m high (5'0" x 3'3")
- Door and windows glazed with glass (no plastic, acrylic, styrene or perspex)
- Optional Georgian glazing beads, which can be removed or left out if you prefer contemporary plain glazing
- Chamferred top wall logs
- Pre assembled gables
- Metal storm bars
- Decorative scalloped fascias
- Front roof overhang 0.35m (1'2")
- Ridge height approximately 3.02m (9'11")
- Eaves height 2.17m (7'1")
5.95m x 5.3m garage
- External garage size 5.95m wide x 5.3m long (19'6" x 17'5")
- Internal room size 5.61m wide x 4.96m long (18'5" x 16'3")
- Minimum base size 5.75m wide x 5.1m long (18'10" x 16'9")
5.95m x 5.8m garage
- External garage size 5.95m wide x 5.8m long (19'6" x 19'0")
- Internal room size 5.61m wide x 5.46m long (18'5" x 17'11")
- Minimum base size 5.75m wide x 5.6m long (18'10" x 18'4")
5.95m x 6.3m garage
- External garage size 5.95m wide x 6.3m long (19'6" x 20'8")
- Internal room size 5.61m wide x 5.96m long (18'5" x 19'7")
- Minimum base size 5.75m wide x 6.1m long (18'10" x 20'0")
LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation. Insulation is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less factory time.
NORDIC SPRUCE: This log cabin is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.
NATURAL WOOD: First, high grade timber is dried in kilns until it reaches the optimum moisture content, then it is planed smooth and machined into tongued and grooved logs and boards. Next the logs are precisely machined at the ends to ensure a precise fit. Finally, each cabin is carefully packed and wrapped. When you unwrap it the wood is untreated. We recommend treating it only after the cabin has been successfully installed and ideally within a week or two. Treating the logs before fitting may cause the wood to swell up and the logs may not fit together correctly. If you are fitting your cabin in a restricted space where future access will be difficult you can stain the logs during installation by reaching down a few logs at a time as you fit them.
FULLY INTERLOCKING LOG CORNERS: These traditionally made log cabins feature interlocking corner logs. Each wall log is precisely machined and notched out to ensure a strong and weatherproof joint. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. No screws or nails are required which makes installation easier and also allows for timber movement. The finished corner assembly is not only immensely strong but also weatherproof and draughtproof. If possible cabins with interlocking logs should be treated after assembly. Treating the logs on site before fitting requires considerable care. If swollen the precision milled joints may not slot together.
WEATHERPROOF DOUBLE GROOVED LOGS: Thinner wall logs feature a single tongue and groove but thicker logs feature a double tongue and groove. The double tongue and groove provides a stronger and more weatherproof joint.
CHAMFERRED TOP WALL LOGS: This high specification apex roof log cabin features a subtle quality feature. The top log in each side wall is chamferred to the same angle as the roof slope. This little detail provides much improved insulation and draughtproofing. It also provides a much neater internal appearance and the roof boards are easier to fix. This simple design feature eliminates an obvious cold spot. The benefits of this feature are magnified if roof insulation is specified.
METAL STORM BARS: Storm bars are an important quality feature. One obvious benefit is that storm bars help to protect your log cabin from wind damage. In addition, by clamping the logs together storm bars make the joints more weatherproof and reduce any bowing or twisting of the logs. The storm bars are fitted at each corner to hold the individual logs together tight. This counters the impact of strong winds. This feature is especially useful if the cabin has a large roof overhang which is exposed to the wind. Many log cabins do not include any storm bars at all and those that do normally include timber storm battens. These metal storm bars are much stronger and neater, being almost completely invisible. Substantial full height threaded steel rods are passed through every log at each corner and bolted at the top and bottom. The bottom of the rods are easily accessible after installation so they can be tightened or loosened as required to allow for any timber movement. It is only possible to fit threaded rods in cabins with thicker logs, because drilling holes in thinner logs reduces their structural integrity.
LAMINATED DOORS AND WINDOWS: Laminated wood is an engineered structural timber. Precisely machined small sections of wood are glued together under high pressure with strong waterproof adhesive. After extensive machining the finished piece of timber is barely distinguishable from real wood - it is real wood, but it is stronger and less likely to warp or twist. Doors and windows made with laminated timber are less prone to distortion. This is because one piece of wood can move erratically while many pieces of wood counteract each other. It is rare to find laminated doors and windows specified in a log cabin due to the high production cost. This is an important quality feature because in a log cabin the doors and windows are a vital component which is particularly exposed to the elements. Laminated timber is also kind to the environment because it uses offcuts and creates less waste.
NO FINGER JOINTS: Finger-jointed timber is widely used in log cabin construction. The principle of finger jointed timber is the same as laminated timber, with small pieces of wood joined together. However, finger jointed timber features jagged comb shaped joints which are clearly visible. In addition, the individual pieces of finger jointed wood are free to move independently from each other. Over time gaps may form at the finger joints as the individual pieces of wood separate. Laminated timber is much rarer in log cabin construction and superior in performance and appearance.
SIZES - LENGTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear. The length refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang.
- Choice of the standard design or you can change the sizes, doors or windows
- The personnel door and side window can be positioned in the left side wall or right side wall and does not need to be specified when ordering
- Double glazed doors and windows
- Additional opening windows
- A choice of a half glazed or a fully boarded single hinged external door for the personnel door
- A choice of square head windows and doors or decorative arched heads
- Choice of Georgian or contemporary plain glazing at the same price - this does not need to be specified when ordering
- A choice of roof coverings, insulation and base kits at exceptionally low prices and all supplied with fixings and detailed instructions
- Untearable roofing felt
- Decorative mineral felt tiles
- Cedar shingle roof with genuine individual cedar tiles traditionally made using only the finest Western Red Cedar
- Granular steel roof tiles with a maintenance free mineral surface which looks and lasts like clay tiles
- Roof insulation
- A selection of microporous wood preservatives in a wide choice of colours
- Natural wood oil preservative in a choice of colours
CUSTOMISATION CHARGE: This fully bespoke log cabin can be customised to suit your individual requirements. You can change the overall size, the doors and the windows. A customisation charge is payable for any change which covers the additional design work.
ADDITIONAL WINDOWS: Additional windows are an inexpensive way to provide more natural daylight and improved ventilation. You can customize the window layout to ensure the best view.
ADDITIONAL DOORS: Additional doors are an inexpensive way to provide better access and improved use of space. You can customize the door position to suit your site.
CUSTOMISED DOOR AND WINDOW LAYOUT: These log cabins are individually made to order so we can make the door and window openings in the factory with pre-cut wall logs for quicker and easier assembly. If you choose this option a customisation charge is payable which covers the additional design work and we will need to agree the exact position of the openings with you before your cabin is made. If you prefer we can supply the additional doors and windows with no pre-cut openings for you to decide during installation. If you choose this option no customisation charge is payable and you do not need to specify in advance where you want to site the additional doors or windows. Instead you will need to cut the logs during assembly. This is a straightforward task with simple 90 degree cuts and all cut edges are concealed by cover trims.
OPTIONAL GEORGIAN OR CONTEMPORARY GLAZING: The Georgian style glazing beads are purely decorative and entirely optional. You can fit them if you prefer Georgian glazing or you can leave them out if you prefer a contemporary glazing style with large panes of glass. You can also add or remove the Georgian glazing beads at any time, even months or years after the original installation. For this reason there is no need to state your preference when you order.
GRANULAR STEEL ROOF TILES: These lightweight granular steel roof tiles are guaranteed for 40 years. The tiles have been tried and tested in every climate throughout the world from hurricanes and hailstones to heatwaves. Uses include homes, flats, schools, offices and all types of buildings. The tiles are pressed from galvanized steel with two further protective layers of weather resistant acrylic and a coverage of natural stone chips. The natural stone chips are bonded to the tiles to give a weatherproof surface with an attractive textured appearance similar to clay tiles. Colours are as accurate as reproductive techniques allow.
CEDAR ROOF SHINGLES: Attractive and durable, cedar shingles make the ideal roof for high specification sectional garages. These genuine cedar roof shingles are traditionally made from Western Red Cedar. The individual cedar shingles are laid over a felted solid pine inner roof. Each individual cedar tile is a known as a shingle. Cedar shingles have long been a popular roofing material for domestic and public buildings in large parts of North America where cedar shingles have a reputation for warmth and longevity. Cedar has an unrivalled reputation for durability and cedar shingles often last for many decades. We use only the highest grade of shingles which are 100% heartwood, 100% free from defects and 100% edge grain. Heartwood edge grain is the densest possible cut which ensures maximum durability. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture.
DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. This ensures that every tile is stuck to the tile below within a few days for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.
UNTEARABLE ROOF FELT: This untearable mineral coated bitumen roofing felt is more durable than standard roofing felt. Standard felt is paper backed or fibreglass backed, both of which are very easy to tear or puncture. This weakness makes standard felt vulnerable to wind damage. Although our untearable roofing felt looks and feels the same it includes a concealed plastic membrane which makes it far stronger. The most common cause of damage to a standard felt roof is a gust of wind getting under the felt and tearing it. Once the felt is torn it is quickly ruined. Standard felt can be torn very easily but our untearable felt cannot be torn by hand without a cutting edge. Even aggressive attempts to tear the felt by hand will only wrinkle the edges as the hidden membrane is stretched.
ROOF INSULATION: Our roof insulation is 50mm thick polyurethane foam with reflective silver alloy laminate facings on both sides. It is certified by the British Board of Agrement. The roof insulation is laid over the roof boards and below the roof covering. This ensures that the internal appearance is unchanged with attractive tongued and grooved boards. No internal lining boards are required. The kit features rigid foam boards which are lightweight and easy to install. Timber battens are also included to retain the insulation boards and to conceal the exposed edges. If your order includes roofing felt or felt tiles longer nails are included for fixing through the insulation. If your order includes cedar shingles or granular steel tiles additional decking boards are supplied which are laid over the insulation to provide a suitable surface for fixing the tiles. Detailed instructions are supplied.
MICROPOROUS PRESERVATIVE - DELIVERED TO YOUR DOOR: Our quality microporous preservatives are impervious to water but not to water vapour. This allows the wood to breathe. You can order up to 3 separate colours if required. At least two coats are normally required with a further coat at periodic intervals.
Our 3 star preservative is practical and affordable with a choice of 4 colours. It covers around 10 square metres per litre and normally lasts 1-2 years before a further coat is required.
Our 4 star preservative is a high quality preservative which covers around 9 square metres per litre and normally lasts 2-5 years before a further coat is requred. It is available with a choice of 12 colours.
Our 5 star preservative is a deluxe high build preservative which can be used to achieve a stunning finish. Each extra coat increases the colour and sheen. It covers around 8 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Based on average coverage five litres of our 4 star preservative is enough for two coats on an 8'x10' shed or an 8'x8' log cabin. Ten litres is enough for three coats on a 10'x16' shed or a 12'x10' log cabin. Coverage varies according to the smoothness of the surface and the porosity of the timber. We recommend that you order more than you need to be sure that you have easily enough. All of these preservatives are safe for use with children and pets. These microporous preservatives are only available when you purchase a Summer garden building or if you purchased a Summer building in the past. Prices include free mainland delivery to England, Wales and southern Scotland. Colours are only as accurate as reproductive techniques allow.
WATERPROOF CLEAR SEAL - DELIVERED TO YOUR DOOR: Our hardwearing clear seal is ideal as a clear varnish for bare timber or as a waterproof top coat for painted wood and pressure treated timber. It is also ideal as a waterproof floor varnish, especially the polyurethane clear seal. The smooth and shiny finished surface is waterproof and easy to clean. Available in a choice of acrylic or polyurethane, these colourless water based coatings are almost odourless and recommended for smooth planed timber only. One coat is normally required as a sealing top coat on painted or treated timber. A minimum of two coats are normally required on untreated wood. Up to three coats may be required for floors. An unsealed timber floor quickly shows muddy boot marks and other dirt. For best results a floor should be treated at the earliest opportunity while the timber is new and clean. On average five litres of our 5 star clear seal is enough for three coats on a 12'x12' floor, two coats on the walls of an 8'x8' log cabin or one coat on the walls of a 12'x16' log cabin. We recommend that you order more than you need to be sure that you have easily enough. The price includes free mainland delivery to England, Wales and southern Scotland.
NATURAL WOOD OIL - DELIVERED TO YOUR DOOR: Our traditional wood oil preservative is linseed oil based and provides a natural ecologically friendly alternative to modern alkyd based preservatives. Wood oil combines the waterproofing qualities of a paint finish with the high absorption rate of woodstain. The natural oiliness provides a highly water repellent surface which protects the wood from moisture. The oil also penetrates deep into the wood and emphasizes the grain. The high elasticity of wood oil allows it to expand and contract with the wood as climatic conditions vary. Three coats are recommended with a further coat after 1-3 years. One litre covers approximately 12 to 16 square metres. Coverage varies according to the smoothness and porosity of the timber so you should order more than you need. On average five litres covers a 10x8 log cabin with three coats and ten litres covers a 20x13 log cabin with 3 coats. Colours are only as accurate as reproductive techniques allow. Prices include free mainland delivery to England, Wales and southern Scotland.
BURGLAR ALARM: This simple and effective battery operated burglar alarm kit is easy to install in any wooden garden building. The main panel features a digital keypad and a powerful built-in siren. Two pre-wired door contacts are also included complete with a length of cable which plugs into the main panel. A 9 volt PP3 alkaline battery is required, which is not supplied with the kit. The alarm is easy to set using the digital keypad. A delay allows plenty of time to enter or leave the building after setting the alarm. Once the alarm has been armed it will be triggered by opening the door or tampering with the wiring. When the alarm is activated the siren emits a powerful and unpleasant sound to deter intruders.
- 28mm and 40mm log cabins: Delivery is normally between 6 and 10 weeks after order.
- 58mm and 70mm log cabins: Delivery is normally between 6 and 10 weeks after order.
- Our sectional garage prices include all delivery charges - unlike others we do not add delivery charges during the checkout process.
- Delivery is by appointment with advance notice by phone a day or two before.
- It is normally possible to deliver this sectional garage even if access is restricted. The wall logs can be carried one or two at a time and all packages are designed to pass through a normal single door.
FREE CRANE OFFLOAD: The delivery lorry normally includes a crane to unload your log cabin quickly and easily without assistance. There is normally one pack which is unloaded on the drive or verge at the front of your property. Larger cabins may be two or three packs which may be stackable. Pack sizes vary from around 3.0m long for a small cabin up to 6.5m long for a larger cabin. The packs are polythene wrapped and securely strapped while in transit but after the pack is opened the individual components are easy to carry. The wall logs can be carried one or two at a time and all packages are designed to pass through a normal single door.
RESTRICTED ACCESS: The delivery vehicle is a large lorry at least 33' or 10m long and 8'6" or 2.6m wide, which is unloaded from the side. If there is no suitable unloading area at your property please contact us. With advance warning we can normally overcome most access restrictions, often at no extra cost. Please contact us if you have any concerns regarding the access at your site.
- All sectional garage prices include VAT.
- Pay only 30% deposit when you order this sectional garage by phone or online.
ORDER BY PHONE: You can pay with a debit or credit card. To order phone us on 01603 721590 seven days a week. You can pay in full or pay a deposit only. You can pay a minimum 30% deposit with order or pay a bigger deposit if you prefer.
ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode. You can pay in full or pay a deposit only. You can pay a minimum 30% deposit with order or pay a bigger deposit if you prefer.
METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Delta, VISA Debit, MasterCard Debit, Electron, Solo, Switch, Maestro and UK Maestro. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.
SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque you will need to order by phone.
- Low cost installation is available in most areas
- Low fixed rates
- Payment on completion
THOUSANDS OF SATISFIED CUSTOMERS: Since we were established in 1981 we have fitted buildings for thousands of customers at unbeatable prices. Our specialist fitters have agreed to fit buildings in your area at low fixed rates in return for regular work. Payment is due on completion. To order online just add your chosen fitting option to your shopping basket before you proceed to the checkout. To order by phone just phone us 7 days a week on 01603 721590.
LOW PRICES FOR BASELAYING AND INSTALLATION: Our unique low cost installation service is available in most areas. To see the prices in your local area just enter the first half of your postcode at the top of every page or CLICK HERE. If available our installation service is offered alongside the building prices. To see the prices just click on the blue "i" symbol next to each fitter.
NO FITTERS IN YOUR AREA? If you cannot see any fitters in your area please phone us for a quotation. If you experience any other problems, for example entering your postcode or finding the fitting prices just contact us. You can phone us on 01603 721590. Lines are open 7 days a week and our expert advisers are always happy to help.
FITTERS & BASELAYERS REQUIRED - REGISTER FREE: Give your business a boost - we can put you in touch with customers in your local area! Register now - its free! We need more fitters and base layers in all areas across England, Scotland and Wales. This free service is so simple - it only takes a few minutes to register. Just phone us on 01603 721590 or CLICK HERE to apply online.
