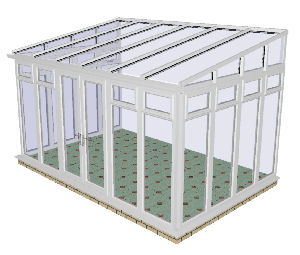

High Pitch Lean To Conservatory 69 - PVCu, Fully Glazed

High Pitch Lean To Conservatory 69 - PVCu, Fully Glazed

Summary:

Made to measure bespoke conservatories. Up to 6.0m wide (19'8"). Up to 3.9m projection (12'9"). White or woodgrain PVCu frames. Double doors. 25mm polycarbonate. Pilkington K glass. DIY self assembly.

Prices fixed until Wednesday 29th May.

The prices INCLUDE DELIVERY. Unlike others we do not add delivery charges at the checkout. Everything you need for assembly is supplied including instructions, fixings and glazing. The prices include toughened safety glass.

SizeWhite with 2 Opening FanlightsWhite with All Fanlights OpeningWoodgrain with 2 Opening FanlightsWoodgrain with All Fanlights OpeningBevelled glass to all fanlights35mm multi wall poly roofClear K glass roofReflex glass roof
9'10" x 6'7"
£3,841
£4,276
£5,001
£5,552
+£428
+£225
+£827
+£1,161
9'10" x 8'2"
£3,943
£4,421
£5,117
£5,755
+£479
+£232
+£1,030
+£1,451
9'10" x 9'10"
£4,044
£4,523
£5,248
£5,886
+£479
+£239
+£1,276
+£1,782
9'10" x 11'6"
£4,421
£5,161
£5,755
£6,698
+£667
+£247
+£1,479
+£2,066
9'10" x 12'10"
£4,798
£5,538
£6,248
£7,191
+£667
+£283
+£1,646
+£2,302
11'6" x 6'7"
£4,131
£4,682
£5,378
£6,089
+£529
+£247
+£957
+£1,350
11'6" x 8'2"
£4,233
£4,842
£5,494
£6,292
+£573
+£254
+£1,196
+£1,688
11'6" x 9'10"
£4,334
£4,943
£5,625
£6,422
+£573
+£261
+£1,486
+£2,072
11'6" x 11'6"
£4,726
£5,581
£6,147
£7,249
+£761
+£261
+£1,726
+£2,410
11'6" x 12'10"
£5,088
£5,944
£6,625
£7,727
+£761
+£305
+£1,921
+£2,680
13'1" x 6'7"
£4,436
£4,987
£5,755
£6,480
+£529
+£261
+£1,095
+£1,546
13'1" x 8'2"
£4,537
£5,146
£5,886
£6,683
+£573
+£268
+£1,370
+£1,931
13'1" x 9'10"
£4,624
£5,233
£6,016
£6,814
+£573
+£276
+£1,704
+£2,369
13'1" x 11'6"
£5,016
£5,871
£6,524
£7,626
+£761
+£283
+£1,972
+£2,754
SizeWhite with 2 Opening FanlightsWhite with All Fanlights OpeningWoodgrain with 2 Opening FanlightsWoodgrain with All Fanlights OpeningBevelled glass to all fanlights35mm multi wall poly roofClear K glass roofReflex glass roof
13'1" x 12'10"
£5,393
£6,248
£7,017
£8,119
+£761
+£319
+£2,197
+£3,065
14'9" x 6'7"
£4,842
£5,378
£6,292
£7,002
+£529
+£283
+£1,233
+£1,742
14'9" x 8'2"
£4,929
£5,538
£6,408
£7,205
+£573
+£290
+£1,544
+£2,174
14'9" x 9'10"
£5,030
£5,639
£6,538
£7,336
+£573
+£297
+£1,914
+£2,666
14'9" x 11'6"
£5,436
£6,277
£7,060
£8,162
+£761
+£305
+£2,219
+£3,098
14'9" x 12'10"
£5,712
£6,567
£7,423
£8,539
+£761
+£341
+£2,465
+£3,449
16'5" x 6'7"
£5,132
£5,813
£6,683
£7,553
+£624
+£305
+£1,370
+£1,931
16'5" x 8'2"
£5,233
£5,973
£6,799
£7,756
+£667
+£312
+£1,711
+£2,410
16'5" x 9'10"
£5,335
£6,060
£6,930
£7,887
+£667
+£319
+£2,124
+£2,963
16'5" x 11'6"
£5,755
£6,727
£7,481
£8,742
+£856
+£326
+£2,465
+£3,443
16'5" x 12'10"
£6,176
£7,147
£8,017
£9,293
+£856
+£363
+£2,741
+£3,827
18'1" x 6'7"
£5,465
£6,132
£7,089
£7,959
+£624
+£319
+£1,508
+£2,126
18'1" x 8'2"
£5,552
£6,292
£7,220
£8,177
+£667
+£326
+£1,885
+£2,653
18'1" x 9'10"
£5,654
£6,379
£7,350
£8,293
+£667
+£334
+£2,342
+£3,260
SizeWhite with 2 Opening FanlightsWhite with All Fanlights OpeningWoodgrain with 2 Opening FanlightsWoodgrain with All Fanlights OpeningBevelled glass to all fanlights35mm multi wall poly roofClear K glass roofReflex glass roof
18'1" x 11'6"
£6,118
£7,089
£7,945
£9,206
+£856
+£341
+£2,712
+£3,787
18'1" x 12'10"
£6,567
£7,539
£8,525
£9,801
+£856
+£377
+£3,016
+£4,212
19'8" x 6'7"
£5,842
£6,509
£7,597
£8,467
+£624
+£341
+£1,646
+£2,315
19'8" x 8'2"
£5,944
£6,669
£7,713
£8,670
+£667
+£341
+£2,052
+£2,896
19'8" x 9'10"
£6,031
£6,770
£7,843
£8,800
+£667
+£348
+£2,552
+£3,557
19'8" x 11'6"
£6,480
£7,466
£8,423
£9,699
+£856
+£355
+£2,958
+£4,131
19'8" x 12'10"
£6,973
£7,945
£9,061
£10,323
+£856
+£399
+£3,292
+£4,597

Specifications

  • Bespoke conservatories, individually made up to 6000mm maximum width and up to 3900mm maximum projection (external brickwork dimensions)
  • Maximum external ridge height 2800mm at 2300mm projection increasing to 3250mm at 3900mm projection. If required, the conservatory frame height can be lowered by 100mm to fit below a height restriction.
  • 10 year guarantee
  • Synerjy PVCu window and door frames
  • Prefabricated conservatory roof system
  • 28mm thick double glazing units (4mm + 20mm + 4mm) manufactured to BS5713
  • Pilkington K glass as standard
  • Toughened glass to BS6206 class A as standard
  • Fully sculptured frame profiles inside and out
  • Internally beaded for improved security
  • Double doors with adjustable flag hinges, multi point locks and shootbolts
  • Double doors feature slave door shootbolts and slave door handles
  • Fanlight window design included as standard
  • Opening windows include friction stays and espagnolette locks
  • White PVCu conservatories include white door and window handles as standard
  • Woodgrain conservatories include gold coloured door and window handles as standard
  • 25mm multi-wall polycarbonate roof glazing in a choice of colours
  • Maximum roof pitch approximately 15 degrees. If required, the roof pitch can be reduced.
  • Eaves height 2100mm as standard. This can be lowered by up to 100mm if required.
  • Ogee gutters with concealed fixing brackets and 1 downpipe
  • Flashing between the existing wall and the conservatory is not supplied

LEAN TO CONSERVATORIES:Lean to conservatories are popular if height is limited. Installation and maintenance are simpler than more complex box gutter designs, which are more difficult to install and maintain.

STRUCTURAL DESIGN: All structural components including the ridge beam, eaves beams, glazing bars, corner posts and frame couplers are extruded aluminium for strength with PVCu thermal cladding for insulation. The conservatory roof loading is in accordance with BS6399 part 3 1988, the wind loading is in accordance with BS6399 part 2 1997 and the conservatory design conforms to BS8118 parts 1 and 2 1991 for the structural use of aluminium.

PREFABRICATED CONSERVATORY ROOF: This conservatory features a prefabricated roof system. This roof is easy to install. The ingenious design is also waterproof because there are no holes drilled through the roof from outside. All glazing bars are bolted to the ridge and eaves from inside. In addition the PVCu ridge cover is bolted from inside. Even the PVCu crests and finials simply slide into a groove in the PVCu ridge cover. The roof is also immensely strong with an aluminium core and PVCu cloaking inside and out.

WOODGRAIN PVCu: If Light Oak woodgrain is specified inside and out the woodgrain foil is laminated onto light tan colour PVCu. If Mahogany or Rosewood is specified inside and out the woodgrain foil is laminated onto darker brown PVCu. Cheaper woodgrain frames are often laminated onto white PVCu. White is a contrasting colour which therefore shows through at edges and ends.

ORDER CONFIRMATION: Soon after the order date an order confirmation will be forwarded for your approval with the dimensions and drawings of the proposed conservatory design. The order confirmation includes plans of the base and dwarf walls with all necessary dimensions such as door opening widths and diagonal dimensions.

LENGTH AND WIDTH: In the SIZES AND PRICES chart the first dimension listed is the maximum width and the second dimension is the maximum projection. The width is measured from side to side and the projection is measured from the existing building. All sizes quoted are approximate external brickwork dimensions, measured from outer face of brickwork to outer face of brickwork.

Options

  • Choice of white PVCu, woodgrain on both sides or woodgrain on one side only
  • Choice of 2 opening fanlights included or all fanlights opening
  • Additional opening windows available if 2 opening fanlights are specified
  • Choice of bronze tinted, white opal tinted or clear untinted polycarbonate all at the same price
  • Choice of polycarbonate or glass roof glazing options.
  • Doors can be positioned in the front or to either side
  • K glass
  • Roof vents
  • Obscure glass or plain PVCu panels if required for privacy
  • High dwarf walls can be specified to either or both sides - at no extra cost

WOODGRAIN COLOURS: The woodgrain colours available are Light Oak, Mahogany or Rosewood. Woodgrain can be applied on both sides so it shows inside and out or on one side only with woodgrain outside and white PVCu inside.

ROOF OPTIONS: Polycarbonate roof options include 35mm polycarbonate, bronze/opal polycarbonate and solar control polycarbonate. Glass roof options include clear K glass roof and Reflex high performance glass.

K GLASS: The double glazed units are made with Pilkington K Glass as the inner pane. K glass has a coating which reflects heat back into the room whilst also letting in free heat from the sun, known as passive solar gain. This is an energy efficient of providing a more comfortable environment in your conservatory.

Delivery

  • Delivery is normally between 2 and 4 weeks after order.
  • Our PVCu conservatory prices include all delivery charges - unlike others we do not add delivery charges during the checkout process.

SPECIALIST DELIVERY SERVICE: These PVCu conservatories are delivered by specialist trained staff in dedicated vehicles. The benefits of a specialist delivery service include less damage, larger panels and helpful drivers who will carry your PVCu conservatory to your chosen storage place. We recommend that glass is stored in a safe place where the driver will stack it neatly for you.

RESTRICTED ACCESS: A quality feature of these PVCu conservatories is that they are made in large rigid panels. If access is restricted, your PVCu conservatory can be specially made in smaller sections designed to pass through a normal single door at no extra cost. The smaller sections are designed to be at least as strong as the larger panels normally supplied. There is no charge for this option but notice is required with the order. If you order online you can select this free option and add it to your basket.

Ordering/Payment

  • All PVCu conservatory prices include VAT.

ORDER BY PHONE: You can pay with a debit or credit card. To order phone us on 01603 721590 seven days a week.

ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode.

METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Delta, VISA Debit, MasterCard Debit, Electron, Solo, Switch, Maestro and UK Maestro. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.

SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque you will need to order by phone.
