Aluminium Carport 372 - Adjustable Height, Polycarbonate Roof

Aluminium Carport 372 - Adjustable Height, Polycarbonate Roof

Summary:

This low maintenance lean to aluminium carport is available in sizes between approximately 8'x8' and 10'x20' (2.5x2.5m and 3.0x6.2m). Standard features include a strong and durable powder coated aluminium frame with a tinted twinwall polycarbonate roof canopy. Larger carports (those at least 16'/5.0m wide) include 3 posts. Smaller carports include 2 posts. Base plates with pre-drilled holes are included to ensure easy fixing into any hard surface. The adjustable design allows the ridge to be raised or lowered. In addition, the eaves height and the exact position of the support posts can also be varied. Increasingly carports are used to store anything but cars including motorbikes, mobility scooters, gardening equipment, boats and general storage. If required, the larger canopies are large enough to fully cover most cars but the smaller canopies only cover the smallest cars. A pair of downpipes are available as an optional extra, which include brackets and fixings. We also offer a joining kit, which can be used to neatly and securely connect two carports together. Instructions are supplied for DIY self assembly.

Prices fixed until Wednesday 16th October.

The prices include courier delivery in mainland England, Wales and southern Scotland. Elsewhere delivery is a few days slower at extra cost. When you order please select the earliest available day or any other weekday but please allow a few days extra in case of delay. All fixings and instructions are included.

SizePolycarbonate Roof, Adjustable HeightDownpipe kit with brackets and fixings
8'4" x 8'4"
£649
+£99
8'4" x 10'4"
£749
+£99
8'4" x 12'4"
£849
+£99
8'4" x 14'4"
£949
+£99
8'4" x 16'3"
£1,049
+£99
10' x 10'4"
£899
+£99
10' x 12'4"
£999
+£99
10' x 14'4"
£1,099
+£99
10' x 16'3"
£1,199
+£99
10' x 18'3"
£1,299
+£99
10' x 20'3"
£1,399
+£99
SizePolycarbonate Roof, Adjustable HeightDownpipe kit with brackets and fixings

Specifications

  • Powder coated aluminium frame
  • Virtually no maintenance required
  • Extruded hollow section box profile profile framing throughout with concealed full length stiffeners to provide extra strength and rigidity
  • Extruded 80mm x 40mm box profile aluminium posts with rounded corners
  • Extruded 80mm x 40mm box profile aluminium eaves beam with rounded corners
  • Extruded 60mm x 40mm box profile aluminium glazing bars
  • Extruded 150mm x 50mm structural aluminium ridge beam
  • Extruded 90mm wide structural aluminium gutter
  • 2 or 3 aluminium posts included (varies according to size)
  • Aluminium posts 6'7" long (2000mm)
  • Tinted 6mm thick twinwall polycarbonate roof
  • Glazing bars at approximately 24" centres (610mm)
  • Integral glazing system holds the polycarbonate glazing in position securely
  • The unique glazing bar design retains the polycarbonate panels with continuous vertical grooves to each side
  • 2 moulded gutter stop end outlets included, with downpipe connectors suitable for rigid pipes or flexible hoses
  • Moulded glazing bar end plates included
  • 2 triangular eaves braces per post to ensure stability
  • Pre-drilled base plates ensure easy fixing into any hard surface including concrete, paving or decking
  • All components required for assembly are supplied cut to length and pre-drilled
  • Ridge and eaves components are too long to be supplied in one piece so two lengths are supplied with offset joins required to preserve structural integrity
  • External eaves height 7'0" (2140mm)
  • Internal eaves height approximately 6'9" (2050mm) to underside of glazing bars
  • Internal height approximately 6'7" (2000mm) to underside of eaves beam

Flexible and adjustable design

  • Adjustable ridge height - the roof pitch and therefore the ridge height is variable. Ideally the roof pitch should be at least 10 degrees but if required it can be reduced by a few degrees or increased up to a maximum of 15 degrees. These are not absolute limits and assembly is possible with a slightly lower or higher roof pitch if required.
  • Adjustable eaves height - the eaves height can be reduced by cutting the posts, which reduces the ridge height by the same amount.
  • Adjustable post positions - the cantilevered design allows the posts to be moved away from the corners if required to avoid an obstruction.
  • Adjustable eaves beam position - the main eaves support beam can be set back from the front if required to avoid an obstruction.
  • The posts can be set in from each corner by between 300mm and 450mm to each side.
  • The eaves beam can be set back from the front by between 200mm and 700mm.
  • If you cut the posts to reduce the height you may need to drill new holes in order to attach the base plates.
  • In normal circumstances we do not advise cutting the posts by more than 150mm (6"), which reduces the clearance below the eaves beam to around 1850mm (6'1").

8'4" x 8'4" carport (2.55m x 2.55m)

  • External roof width 8'4" (2550mm)
  • External roof projection 8'2" (2500mm) at 10 degrees roof pitch
  • External ridge height 8'4" (2550mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'0" (2750mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'0" (2450mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'7" (2300mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 5'11"-7'7" (1800-2300mm) from wall to inside of posts
  • 2 aluminium posts included

8'4" x 10'4" carport (2.55m x 3.14m)

  • External roof width 10'4" (3140mm)
  • External roof projection 8'2" (2500mm) at 10 degrees roof pitch
  • External ridge height 8'4" (2550mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'0" (2750mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'0" (2450mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'7" (2300mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 5'11"-7'7" (1800-2300mm) from wall to inside of posts
  • 2 aluminium posts included

8'4" x 12'4" carport (2.55m x 3.75m)

  • External roof width 12'4" (3750mm)
  • External roof projection 8'2" (2500mm) at 10 degrees roof pitch
  • External ridge height 8'4" (2550mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'0" (2750mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'0" (2450mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'7" (2300mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 5'11"-7'7" (1800-2300mm) from wall to inside of posts
  • 2 aluminium posts included

8'4" x 14'4" carport (2.55m x 4.36m)

  • External roof width 14'4" (4360mm)
  • External roof projection 8'2" (2500mm) at 10 degrees roof pitch
  • External ridge height 8'4" (2550mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'0" (2750mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'0" (2450mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'7" (2300mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 5'11"-7'7" (1800-2300mm) from wall to inside of posts
  • 2 aluminium posts included

8'4" x 16'3" carport (2.55m x 4.96m)

  • External roof width 16'3" (4960mm)
  • External roof projection 8'2" (2500mm) at 10 degrees roof pitch
  • External ridge height 8'4" (2550mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'0" (2750mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'0" (2450mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'7" (2300mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 5'11"-7'7" (1800-2300mm) from wall to inside of posts
  • 3 aluminium posts included

10' x 10'4" carport (3.05m x 3.14m)

  • External roof width 10'4" (3140mm)
  • External roof projection 9'10" (3000mm) at 10 degrees roof pitch
  • External ridge height 8'8" (2650mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'4" (2850mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'4" (2550mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'10" (2400mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 7'7"-9'1" (2300-2780mm) from wall to inside of posts
  • 2 aluminium posts included

10' x 12'4" carport (3.05m x 3.75m)

  • External roof width 12'4" (3750mm)
  • External roof projection 9'10" (3000mm) at 10 degrees roof pitch
  • External ridge height 8'8" (2650mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'4" (2850mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'4" (2550mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'10" (2400mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 7'7"-9'1" (2300-2780mm) from wall to inside of posts
  • 2 aluminium posts included

10' x 14'4" carport (3.05m x 4.36m)

  • External roof width 14'4" (4360mm)
  • External roof projection 9'10" (3000mm) at 10 degrees roof pitch
  • External ridge height 8'8" (2650mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'4" (2850mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'4" (2550mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'10" (2400mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 7'7"-9'1" (2300-2780mm) from wall to inside of posts
  • 2 aluminium posts included

10' x 16'3" carport (3.05m x 4.96m)

  • External roof width 16'3" (4960mm)
  • External roof projection 9'10" (3000mm) at 10 degrees roof pitch
  • External ridge height 8'8" (2650mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'4" (2850mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'4" (2550mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'10" (2400mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 7'7"-9'1" (2300-2780mm) from wall to inside of posts
  • 3 aluminium posts included

10' x 18'3" carport (3.05m x 5.57m)

  • External roof width 18'3" (5570mm)
  • External roof projection 9'10" (3000mm) at 10 degrees roof pitch
  • External ridge height 8'8" (2650mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'4" (2850mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'4" (2550mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'10" (2400mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 7'7"-9'1" (2300-2780mm) from wall to inside of posts
  • 3 aluminium posts included

10' x 20'3" carport (3.05m x 6.18m)

  • External roof width 20'3" (6180mm)
  • External roof projection 9'10" (3000mm) at 10 degrees roof pitch
  • External ridge height 8'8" (2650mm) at around 10 degrees roof pitch with standard posts
  • External ridge height 9'4" (2850mm) at around 15 degrees roof pitch with standard posts
  • External ridge height 8'4" (2550mm) at around 7 degrees roof pitch with standard posts
  • External ridge height 7'10" (2400mm) at around 7 degrees roof pitch with posts 150mm shorter
  • Projection of posts 7'7"-9'1" (2300-2780mm) from wall to inside of posts
  • 3 aluminium posts included

POWDER COATED ALUMINIUM: Extruded hollow section aluminium profiles are cut to size and drilled or welded to form a lightweight and strong frame. Aluminium is ideal for outside use because it does not corrode like steel. The aluminium is powder coated, a tough paint finish which has excellent weathering properties.

TWIN WALL POLYCARBONATE: Twin wall polycarbonate is virtually unbreakable and very practical. Polycarbonate is safe with small children or pets around and easy to handle during installation. Tinted polycarbonate reduces glare by diffusing light in the same way as sunglasses.

CARPORTS - THE BENEFITS: Carports are often the cheapest way to protect your car from the elements but also the quickest and most convenient to use with no doors or locks. Increasingly carports are used as an inexpensive and handy general storage area for a multitude of other things including motorbikes, cycles, boats, garden furniture, tools and equipment, ride on mowers and ladders to name but a few. With open sides the access is convenient but a carport is not as secure as a shed or garage. You should consider security before deciding which items to store in your carport. In essence a carport is just a large roof canopy with open sides so it provides a great storage area for large bulky items which need to be kept dry.

CARPORT SIZE: If possible the carport should be larger than your car to provide full protection. However, it is not essential for the carport to be larger in all cases, especially with an older car. For example, if the car is always parked in the same position under the carport and rarely used then over time it may be possible to discern a difference in the paint colour. But if you only park under the carport in bad weather this would take much longer.

SEALING A CARPORT AGAINST THE WALL: Although it is not essential, for best results a carport should be sealed against the host wall. There are various ways of doing this depending on the wall surface. The easiest way is a simple silicone seal but this will require the most maintenance. Adhesive flashing is a more permanent solution but it will also require occasional maintenance. The best seal is lead flashing dressed into the existing mortar, which requires little or no maintenance. However, it is the most expensive option and normally requires a plumber. With no seal at all, a carport still provides a waterproof canopy and although the walls may be damp on occasion this may not be a problem. Carports are normally supplied with no flashing or sealant included due to the various different options available to suit different sites and individual requirements.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external sizes are listed alongside the price. The first dimension listed is the projection and the second dimension is the width. The projection is measured from the existing building. All sizes are approximate.

Options

  • Next day delivery or delay the delivery until you're ready at the same price
  • Downpipe kit with brackets and fixings - This popular accessory is currently out of stock. Delivery of the downpipe kit will follow on once new stock arrives in November.
  • Joining kit to neatly connect two carports

DOWNPIPE KIT: A popular option is our downpipe kit, which connects onto the standard guttering outlets supplied with the gazebo. The kit includes grey PVCu downpipes for both ends of the guttering, along with multiple angled connectors, brackets and fixings. The downpipes can be cut to length, which enables the kit to be compatible with the adjustable position of the corner posts, but also to suit either supplying a waterbutt or leaving them full length so they drain to the ground.

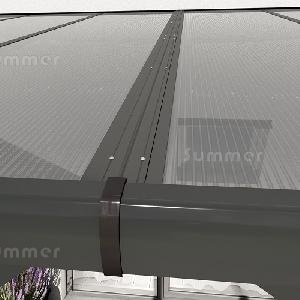

CARPORT JOINING KIT: This kit includes everything you need to neatly and securely connect two of these carports together. For example, you could connect a 10ft wide carport to a 12ft wide one to create a carport approximately 22ft wide. In addition to the aluminium trim running up the roof to cover the join where the two carports meet, the kit also has pieces for joining the gutters and the eaves beams, along with all required fixings. On carports with an 8ft projection, the cover trim will need cutting to length though the exposed edge will be concealed by the carport's gutter once it is in place. The aluminium cover trim is powder coated the same colour as the main glazing bars of the carport to ensure a smart appearance.

Delivery

  • FREE NEXT DAY DELIVERY or delay the delivery until you are ready then YOU TELL US WHICH DAY TO DELIVER
  • We always have a large stock of this sectional garage available - so we can always despatch your order immediately.
  • Please provide at least one DAYTIME PHONE NUMBER where you can be contacted during the daytime if needed.
  • We recommend that someone is present to receive your sectional garage. If this is not possible we can deliver when you are out - please contact us for options.
  • The driver can normally unload your sectional garage at the kerbside without assistance even if it is heavy. At most sites the driver can normally carry all but the heaviest parcels into the back garden unaided but it may not be possible to carry all heavy parcels to your preferred place, especially if there are steps or other obstructions.
  • PERFORMANCE DATA: Over 90% delivered on time, less than 5% of deliveries reported damaged. We check the performance of our carriers regularly and publish the results. These large and heavy parcels are extremely difficult to deliver. Most carriers refuse to carry such bulky items. Too large for automated sorting lines, these parcels can only be handled manually. Drivers and warehouse staff struggle to lift these packages so occasional delays are more likely. Please allow a few days extra to avoid disappointment.

TELL US WHICH DAY: You need to tell us which day to deliver. If you want fast delivery please select the earliest available day while ordering. If you did not select a delivery day and you want fast delivery please email us as soon as possible after ordering. If you are not ready for delivery you do not need to select a delivery day while ordering - you can request delivery later.

NEXT DAY DELIVERY: Next day delivery is available throughout mainland England, Wales, southern Scotland and central Scotland. We deliver on the next working day if requested before 10.00am. For example, to request delivery on Monday just contact us before 10.00am on Friday.

DELAYED DELIVERY: You can request a delivery day weeks in advance or you can wait to choose a delivery day later. We can deliver on any weekday of your choice, just contact us before 10.00am the day before.

SCOTLAND: Delivery is normally next day to all mainland addresses in AB, DD, DG, EH, FK, G, KA, KY, ML, PA1-19, PA21-23, PA35-36, PH1-18 and TD postcodes. Delivery is 2-3 days to mainland and offshore addresses in all other postcodes.

OFFSHORE ISLANDS: Delivery is normally next day to the Isle of Wight. Delivery is within 2-3 days to the Scottish Islands, the Isle of Man and the Scilly Isles.

NORTHERN IRELAND: Unfortunately we're currently unable to deliver to Northern Ireland at present.

REPUBLIC OF IRELAND: Unfortunately we're currently unable to deliver to Republic of Ireland at present.

2-3 DAY DELIVERY: In some areas next day delivery is not possible. 2-3 day delivery is the only option in Northern Scotland, the Scottish Islands, the Isle of Man and the Scilly Isles. In these areas the AM and Saturday delivery options are also not available.

AM DELIVERY: This low cost option is available at any mainland address in England and Wales. The AM delivery option is also available in Scotland to mainland address in AB10-16, AB21-23, AB24-25, DD, DG, EH, FK1-18, G, KA, KY, ML, PA1-19, PH1-14 and all TD postcodes. The AM delivery service is not available in Northern Ireland, the Republic of Ireland or at any offshore address. If your delivery is outside the specified time the charge will be fully refunded.

SATURDAY DELIVERY: This low cost option is available at any mainland address in England or Wales. Saturday delivery is also available in Scotland to mainland address in AB10-16, AB21-23, AB24-25, DD, DG, EH, FK1-18, G, KA, KY, ML, PA1-19, PH1-14 and all TD postcodes. The Saturday delivery service is not available in Northern Ireland, the Republic of Ireland or at any offshore address. To request delivery on Saturday just email us before 10.00am on Friday.

NO HIDDEN DELIVERY CHARGES: The price you see is the price you pay. Our sectional garage prices include all delivery charges - unlike most others we do not add delivery charges during the checkout process. However the prices may vary in different areas. You need to enter the first half of your postcode to see the correct prices in your local area. If you have not already done so click here to enter the FIRST HALF of your POSTCODE.

Ordering/Payment

  • All sectional garage prices include VAT.

ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode.

METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Debit and MasterCard Debit. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.

SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque please email us.

Features and Accessories

GARAGES AND CARPORTS xx - Joining kits
Joining kits
GARAGES AND CARPORTS xx - Bargain rattan furniture sets
Bargain rattan furniture sets
GARAGES AND CARPORTS xx - Car and van sizes
Car and van sizes
GARAGES AND CARPORTS xx - Solar powered string lights - no running costs
Solar powered string lights - no running costs
GARAGES AND CARPORTS xx - Solar powered inside lights - no running costs
Solar powered inside lights - no running costs
GARAGES AND CARPORTS xx - Solar powered mood lights - no running costs
Solar powered mood lights - no running costs
GARAGES AND CARPORTS xx - Solar powered outside lights with motion sensors - no running costs
Solar powered outside lights with motion sensors - no running costs
GARAGES AND CARPORTS xx - Solar powered spot lights - no running costs
Solar powered spot lights - no running costs
